The maximum clock frequency for the SNJ54LS595J is 25 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the timing diagrams and specifications in the datasheet for more information.
The asynchronous clear input (CLR) is an active-low input that resets the shift register when it's low. To use it, connect CLR to a logic low signal when you want to clear the register, and ensure that it's high when you're shifting data. You can also use an external reset signal or a power-on reset circuit to clear the register.
The recommended operating voltage range for the SNJ54LS595J is 4.5V to 5.5V. Operating the device outside of this range may affect its performance, reliability, and lifespan.
To prevent signal reflections, it's recommended to terminate the output signals with a suitable load impedance, such as a 50-ohm resistor, and to use a transmission line with a controlled impedance. You can also use a series terminator or a parallel terminator, depending on your specific application.
While the SNJ54LS595J is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device will still function, but its performance may be affected, and the output voltage levels may not be compatible with 3.3V logic. You may need to use level translators or voltage dividers to interface with 3.3V devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SNJ54LS595J Overview

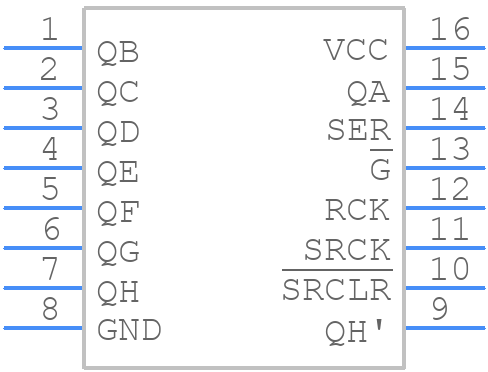

Use the download button to access the SNJ54LS595J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SNJ54,
or try a keyword search, such as Shift Registers
