A good PCB layout for the SNJ55110AJ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
To ensure proper biasing, follow the recommended biasing scheme in the datasheet, which includes setting the input common-mode voltage to VCC/2 and using a voltage divider to set the output common-mode voltage. Additionally, ensure the input and output resistors are properly matched.
The maximum power dissipation of the SNJ55110AJ is dependent on the package type and thermal resistance. Calculate the power dissipation using the formula: Pd = (VCC x ICC) + (Vout x Iout), where VCC is the supply voltage, ICC is the quiescent current, Vout is the output voltage, and Iout is the output current.
To minimize EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure good PCB layout practices, such as keeping traces short and using a solid ground plane.
The recommended operating temperature range for the SNJ55110AJ is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SNJ55110AJ Overview

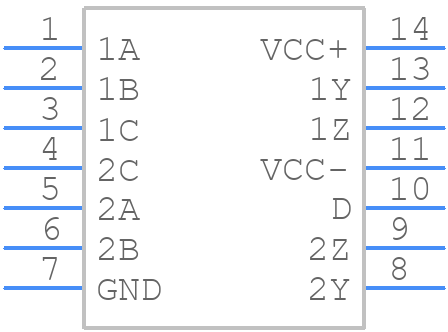

Use the download button to access the SNJ55110AJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SNJ55,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
