1 RECEIVER ACTIVE UNDER SHUTDOWN; CONFIGURABLE TOTEM-POLE OUTPUTS; DIFFERENTIAL OUTPUT PAIRS
Differential Output:
YES
Driver Number of Bits:
2
High Level Input Current-Max:
0.00004 A
Input Characteristics:
DIFFERENTIAL
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
GENERAL PURPOSE
JESD-30 Code:
R-GDIP-T16
JESD-609 Code:
e0
Length:
19.56 mm
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Out Swing-Min:
1.8 V
Output Characteristics:
3-STATE
Output Low Current-Max:
0.00004 A
Output Polarity:
COMPLEMENTARY
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Receive Delay-Max:
75 ns
Receiver Number of Bits:
1
Screening Level:
MIL-PRF-38535
Seated Height-Max:
5.08 mm
Supply Current-Max:
60 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Supply Voltage1-Max:
5.5 V
Supply Voltage1-Min:
4.5 V
Supply Voltage1-Nom:
5 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Transmit Delay-Max:
30 ns
Width:
7.62 mm
SNJ55116J Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
To ensure stability, follow the recommended component values and PCB layout. Additionally, consider adding a small capacitor (e.g., 10nF) between the output and the inverting input to improve stability. Also, make sure the output is properly terminated, and the input impedance is matched to the source impedance.
The maximum power dissipation for the SNJ55116J is not explicitly stated in the datasheet. However, based on the package thermal resistance and the maximum junction temperature, it's recommended to keep the power dissipation below 1.5W to ensure reliable operation.
The SNJ55116J is rated for operation up to 125°C, but the performance may degrade at higher temperatures. If you need to operate in a high-temperature environment, consider using a more temperature-stable op-amp or taking additional measures to ensure thermal management.
The SNJ55116J has built-in ESD protection, but it's still essential to follow proper handling and storage procedures to prevent damage. Use an anti-static wrist strap, mat, or packaging materials, and avoid touching the device pins or exposed internal components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SNJ55116J Overview

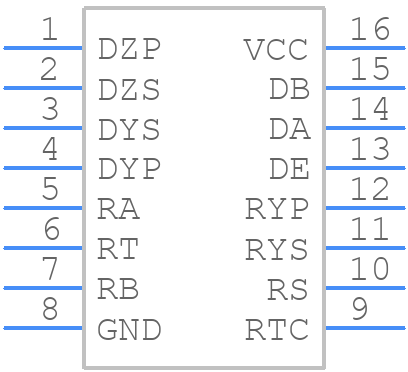

Use the download button to access the SNJ55116J schematic symbol, PCB footprint, and 3D model.
