LOW POWER SHUTDOWN AND TRI-STATE ENABLE AND WAKE-UP FUNCTION
Differential Output:
NO
Driver Number of Bits:
4
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-232; V.28
JESD-30 Code:
R-PDSO-G28
JESD-609 Code:
e3
Length:
10.2 mm
Moisture Sensitivity Level:
2
Number of Functions:
4
Number of Terminals:
28
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receive Delay-Max:
1500 ns
Receiver Number of Bits:
5
Seated Height-Max:
1.99 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
5.29 mm
SP213ECA-L/TR Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the analog and digital grounds separate, using a solid ground plane, and placing decoupling capacitors close to the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad connection.
To optimize power consumption, use the device's power-down modes, adjust the clock frequency, and minimize the use of unnecessary features. Additionally, consider using a lower voltage supply and optimizing the external component selection.
For EMI protection, use a shielded enclosure, keep the device away from noise sources, and use EMI filters on the input/output lines. For ESD protection, use ESD-protection diodes, follow proper handling and storage procedures, and ensure the device is properly grounded.
To troubleshoot, start by checking the power supply, clock, and reset signals. Verify the device is properly configured and initialized. Use debugging tools like logic analyzers or oscilloscopes to identify signal integrity issues. Consult the datasheet and application notes for specific troubleshooting guidelines.
For high-reliability or high-temperature environments, ensure the device is properly derated, use a heat sink if necessary, and follow the recommended operating conditions. Consider using a device with a higher temperature rating or a more robust package option.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP213ECA-L/TR Overview

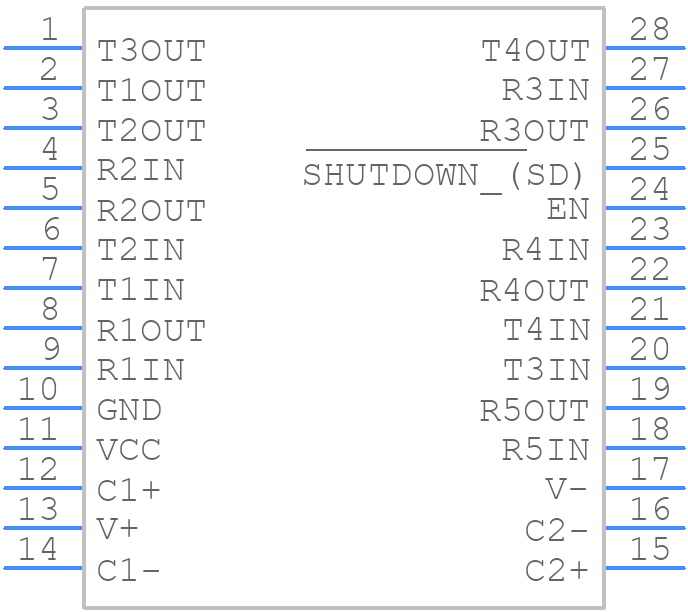

Use the download button to access the SP213ECA-L/TR schematic symbol, PCB footprint, and 3D model.
