SPC15386 - Multicomp Pro

Description: PLUG, D, HIGH DENSITY, PCB 78WAY

Download SPC15386 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

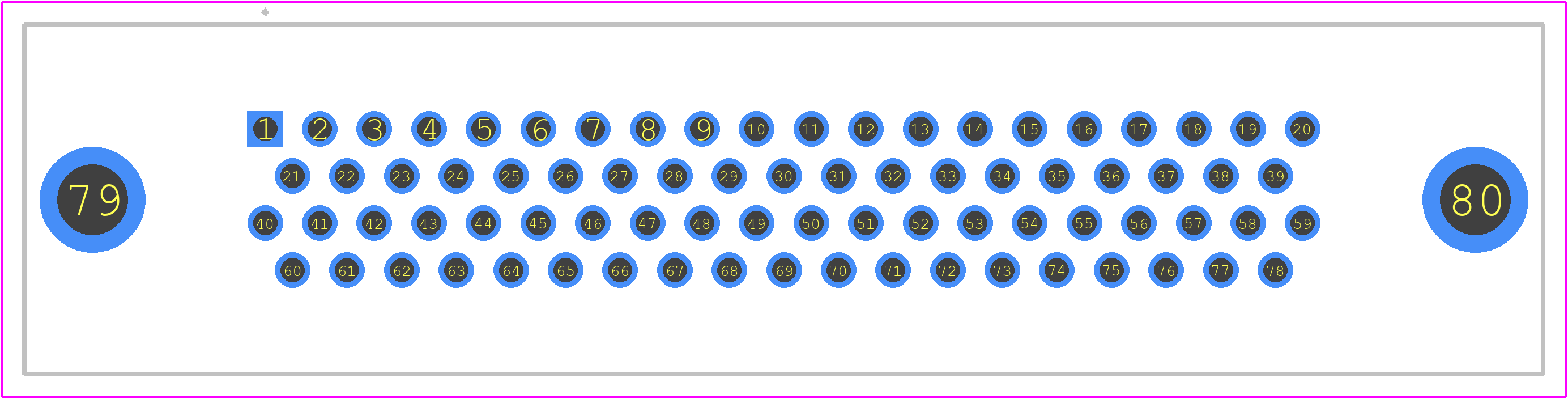

SPC15386 - Multicomp Pro PCB footprint - Other - Other - SPC15386-2
click to zoom
3D Models
SPC15386 - Multicomp Pro  - 3D model - Other - SPC15386-2
click to zoom

SPC15386 Details

  • Manufacturer Part Number:

    SPC15386

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    SPC Multicomp

  • Body Breadth:

    0.606 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    2.638 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.095 inch

  • Mating Contact Row Spacing:

    0.082 inch

  • Mounting Option 1:

    HOLE .112-.124

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -50 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.0828 mm

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Terminal Length:

    0.213 inch

  • Terminal Pitch:

    2.413 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    78
