SPSGRFC-868 - STMicroelectronics

Description: STMICROELECTRONICS - SPSGRFC-868 - RF TRANSCEIVERS, 500KBPS, 868MHZ

Download SPSGRFC-868 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

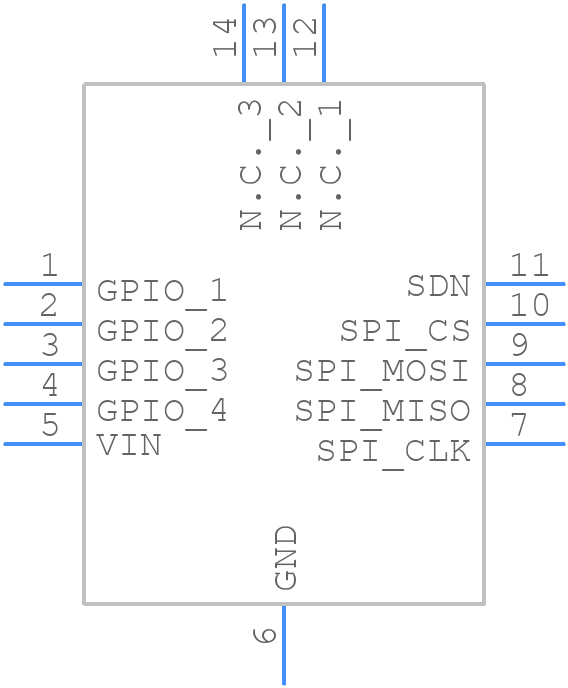

SPSGRFC-868 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SPSGRFC-868 - STMicroelectronics PCB footprint - Other - Other - SPSGRFC-868-2
click to zoom
3D Models
SPSGRFC-868 - STMicroelectronics - 3D model - Other - SPSGRFC-868-2
click to zoom

SPSGRFC-868 Details

  • Manufacturer Part Number:

    SPSGRFC-868

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Italy

  • ECCN Code:

    5A992.C

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

SPSGRFC-868 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for SPSGRFC-868 is 1.8V to 3.6V.
  • To configure the SPSGRFC-868 for optimal performance, set the XTAL frequency to 26 MHz, and adjust the PLL loop filter components according to the application note AN2866.
  • The SPSGRFC-868 supports a maximum data rate of 100 kbps.
  • To implement antenna diversity with SPSGRFC-868, use an external antenna switch and connect it to the RF pins of the device. Refer to the application note AN2866 for more details.
  • The typical current consumption of SPSGRFC-868 is around 12 mA in receive mode and 20 mA in transmit mode.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPSGRFC-868 Overview

Use the download button to access the SPSGRFC-868 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPSGR, or try a keyword search, such as Other Telecom ICs
