SPSGRFC-915 - STMicroelectronics

Description: Sub-1 GHz (433, 868 or 915 MHz) programmable transceiver module with UFL connector

Download SPSGRFC-915 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

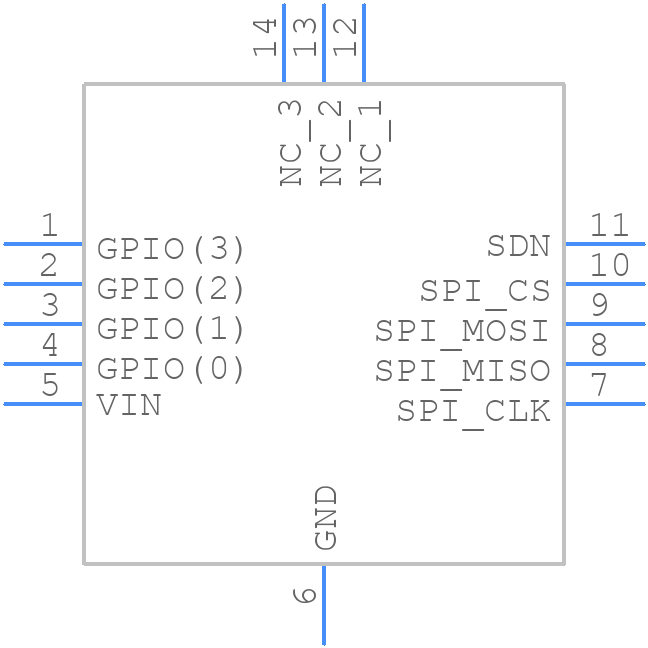

SPSGRFC-915 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SPSGRFC-915 - STMicroelectronics PCB footprint - Other - Other - SPSGRFC-915
click to zoom
3D Models
SPSGRFC-915 - STMicroelectronics - 3D model - Other - SPSGRFC-915
click to zoom

SPSGRFC-915 Details

  • Manufacturer Part Number:

    SPSGRFC-915

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Italy

  • ECCN Code:

    5A992.C

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

SPSGRFC-915 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SPSGRFC-915 is -40°C to +85°C.
  • To configure the SPSGRFC-915 for optimal performance, refer to the application note AN5323 from STMicroelectronics, which provides detailed guidelines for antenna selection, PCB layout, and component selection.
  • The maximum transmit power of the SPSGRFC-915 is +20 dBm (100 mW).
  • Yes, the SPSGRFC-915 is a dual-band module that can operate in both 868 MHz and 915 MHz frequency bands, making it suitable for various regional regulations and applications.
  • The typical current consumption of the SPSGRFC-915 is around 35 mA in transmit mode and 10 mA in receive mode, depending on the specific operating conditions and configuration.
