SPV1040TTR - STMicroelectronics

Description: Switching Voltage Regulators Hi Eff Solar Charger MPPT 0.3V to 5.5V

Download SPV1040TTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

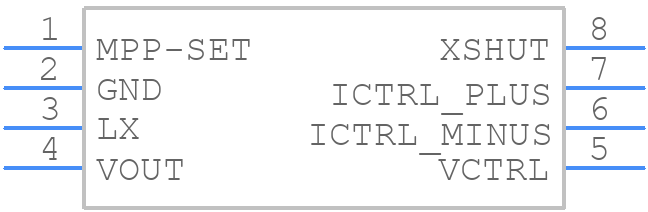

SPV1040TTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SPV1040TTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP8
click to zoom
3D Models
SPV1040TTR - STMicroelectronics - 3D model - Small Outline Packages - TSSOP8
click to zoom

SPV1040TTR Details

  • Manufacturer Part Number:

    SPV1040TTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    35 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    THERMAL SHUTDOWN:155C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

SPV1040TTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the SPV1040TTR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the stability of the output voltage, it is essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A minimum output capacitance of 10uF is recommended, and the capacitor should be placed as close to the device as possible.
  • The SPV1040TTR can handle a maximum input voltage of 36V, but it is recommended to keep the input voltage below 32V to ensure reliable operation and to prevent overheating.
  • The SPV1040TTR has built-in overcurrent protection, but it is still essential to add external protection mechanisms such as fuses or PTC resistors to prevent damage from excessive current. Additionally, ensure good airflow around the device and use a heat sink if necessary to prevent overheating.
