SPV1050-WST - STMicroelectronics

Description: Ultra low power energy harvester and battery charger with embedded MPPT and LDOs

Download SPV1050-WST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

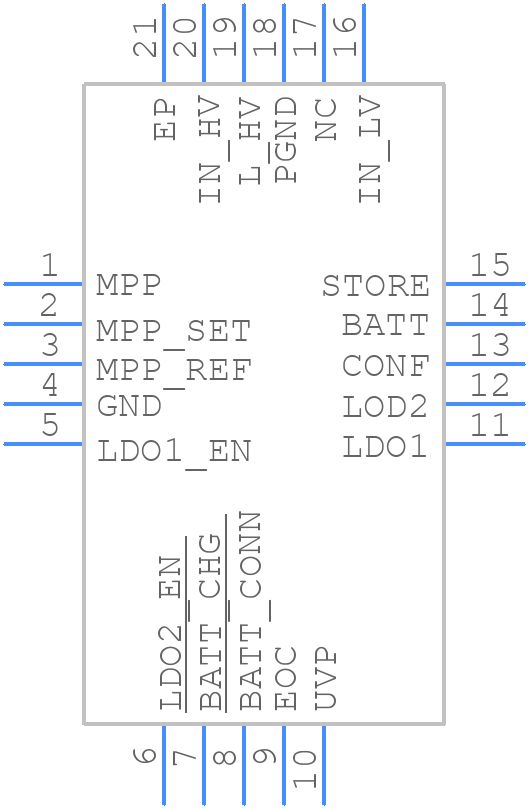

Symbol
SPV1050-WST - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SPV1050-WST - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN3x3 20L_2020
click to zoom
3D Models
SPV1050-WST - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN3x3 20L_2020
click to zoom

SPV1050-WST Details

  • Manufacturer Part Number:

    SPV1050-WST

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIE-21

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XUUC-N21

  • Length:

    0.0811 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    21

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIE

  • Package Equivalence Code:

    DIE OR CHIP

  • Package Shape:

    SQUARE

  • Package Style:

    UNCASED CHIP

  • Supply Voltage-Max (Vsup):

    5.3 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UPPER

  • Threshold Voltage-Nom:

    +1.8V

  • Width:

    0.0811 mm

SPV1050-WST Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the SPV1050-WST application note (AN5323). It's essential to follow this layout to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The SPV1050-WST has a programmable input voltage range. You can configure it using the EN pin and the VREF pin. Refer to the datasheet and application note for specific configuration details.
  • The maximum power dissipation of the SPV1050-WST is 1.5 W. Ensure that your design takes into account thermal considerations to prevent overheating and ensure reliable operation.
  • The SPV1050-WST is rated for operation up to 125°C. However, it's essential to consider the derating curves and thermal management in your design to ensure reliable operation in high-temperature environments.
  • The SPV1050-WST has a built-in OVP feature. You can configure it using the OVP pin and an external resistor. Refer to the datasheet and application note for specific implementation details.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPV1050-WST Overview

Use the download button to access the SPV1050-WST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPV10, or try a keyword search, such as Power Management Circuits
