Part Image

SQJ912DEP-T1_GE3 - Vishay

Description: MOSFET Automotive Dual N-Channel 40 V (D-S) 175C MOSFET PowerPAK SO-8L, 7.3 mO @ 10V mO @ 7.5V 10.2 mO @ 4.5V

Download SQJ912DEP-T1_GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

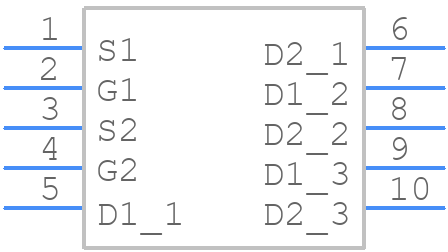

Symbol
SQJ912DEP-T1_GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SQJ912DEP-T1_GE3 - Vishay PCB footprint - Other - Other - SQJ968EP-T1_GE3-1
click to zoom
3D Models
SQJ912DEP-T1_GE3 - Vishay - 3D model - Other - SQJ968EP-T1_GE3-1
click to zoom

SQJ912DEP-T1_GE3 Details

  • Manufacturer Part Number:

    SQJ912DEP-T1_GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-8L, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    18 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    30 A

  • Drain-source On Resistance-Max:

    0.0073 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    44 pF

  • JESD-30 Code:

    R-PSSO-G4

  • Number of Elements:

    2

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    120 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    85 ns

  • Turn-on Time-Max (ton):

    30 ns

SQJ912DEP-T1_GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SQJ912DEP-T1_GE3 is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
  • To handle thermal management, ensure good thermal conductivity between the device and the PCB by using a thermal pad or thermal interface material. Also, consider using a heat sink or a thermal management system to keep the junction temperature below 150°C.
  • The maximum allowed voltage derating for the SQJ912DEP-T1_GE3 is 80% of the rated voltage, which is 900 V. Therefore, the maximum allowed voltage is 720 V.
  • Yes, the SQJ912DEP-T1_GE3 is suitable for high-frequency applications up to 1 MHz. However, it's essential to consider the device's parasitic capacitance and inductance when designing the circuit.
  • To ensure reliability in a humid environment, follow proper storage and handling procedures, and consider using a conformal coating or potting compound to protect the device from moisture.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SQJ912DEP-T1_GE3 Overview

Use the download button to access the SQJ912DEP-T1_GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SQJ91, or try a keyword search, such as Power Field-Effect Transistors
