SRC4190IDB - Texas Instruments

Description: 192kHz Stereo Asynchronous Sample Rate Converters 3.3V,-45°C ~ 85°C (TA)

Download SRC4190IDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

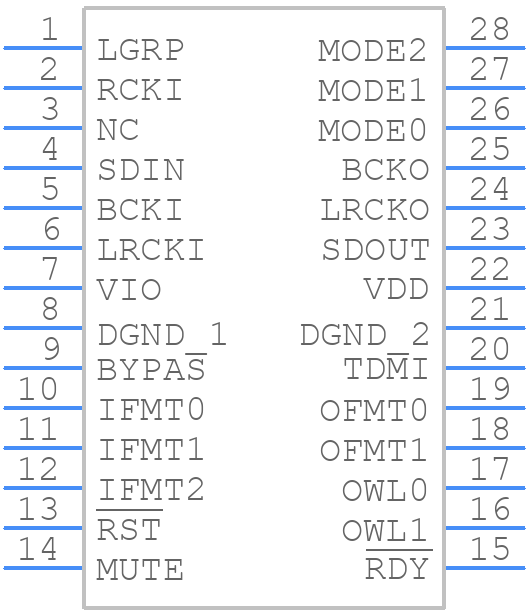

SRC4190IDB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SRC4190IDB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
SRC4190IDB - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

SRC4190IDB Details

  • Manufacturer Part Number:

    SRC4190IDB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

SRC4190IDB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the SRC4190IDB near the power source to minimize noise and EMI. A good layout practice is to keep the input and output traces separate and away from each other.
  • The output filter design depends on the specific application requirements. A general guideline is to use a 2nd-order LC filter with a cutoff frequency around 1-2 MHz to filter out high-frequency noise. The component values can be calculated using TI's Webench tool or by consulting the application notes.
  • The SRC4190IDB can handle up to 18V input voltage, but it's recommended to operate within the specified range of 12V to 15V for optimal performance and reliability.
  • The SRC4190IDB operates within a temperature range of -40°C to 125°C. Ensure good thermal design practices, such as providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources.
  • To minimize EMI and noise, use a shielded enclosure, keep the input and output traces separate, use a common-mode choke, and add EMI filters at the input and output. Additionally, ensure good PCB layout practices, such as using a solid ground plane and minimizing loop areas.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SRC4190IDB Overview

Use the download button to access the SRC4190IDB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRC41, or try a keyword search, such as Other Consumer ICs
