Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the device close to the power source to minimize noise and EMI. A good layout practice is to keep the input and output traces separate and away from each other.
To ensure stability, make sure to follow the recommended component values and layout guidelines. Additionally, add a 10nF capacitor between the VIN and GND pins to filter out high-frequency noise. Also, ensure the output capacitor is properly sized and placed close to the device.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
To optimize for low power, use a low-input voltage, reduce the output voltage, and minimize the output current. Additionally, consider using a lower-frequency oscillator or disabling the oscillator when not in use to reduce power consumption.
To prevent overheating, ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments. Also, follow the recommended PCB layout guidelines to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRC4193IDB Overview

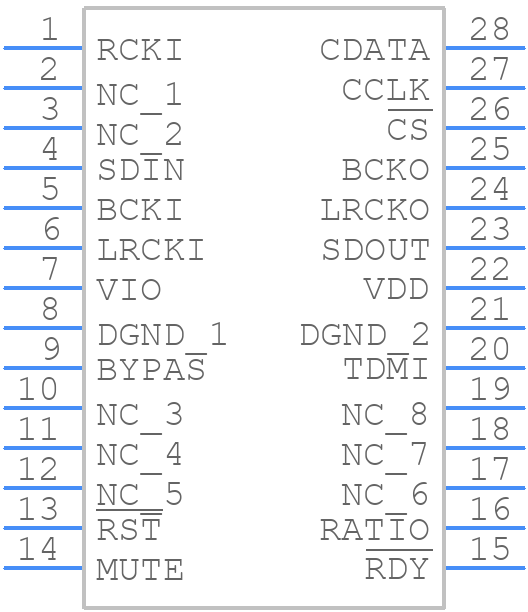

Use the download button to access the SRC4193IDB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRC41,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
