A good PCB layout for the SSM2167-1RM-REEL involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's thermal pad should be connected to a solid copper area on the PCB to ensure good thermal dissipation.
To ensure proper biasing, the SSM2167-1RM-REEL requires a stable voltage supply, typically between 4.5V to 11V. The device's input pins (VIN+ and VIN-) should be biased to a voltage that is within the recommended common-mode voltage range. Additionally, the output pins (VOUT+ and VOUT-) should be loaded with a resistive load that is within the recommended range to ensure stable operation.
The maximum power dissipation of the SSM2167-1RM-REEL is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the device can dissipate up to 1.4W of power at an ambient temperature of 25°C. However, this value can be derated at higher temperatures. It's essential to ensure good thermal design and heat dissipation to prevent overheating and ensure reliable operation.
The SSM2167-1RM-REEL is rated for operation up to 125°C, but its performance may degrade at higher temperatures. It's essential to consider the device's thermal characteristics and ensure proper heat dissipation when operating in high-temperature environments. Additionally, the device's reliability and lifespan may be affected by prolonged exposure to high temperatures.
Common issues with the SSM2167-1RM-REEL can often be attributed to poor PCB layout, inadequate decoupling, or incorrect biasing. To troubleshoot, start by verifying the PCB layout and ensuring that the device is properly biased. Check for oscillations using an oscilloscope and ensure that the output is properly loaded. If issues persist, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SSM2167-1RM-REEL Overview

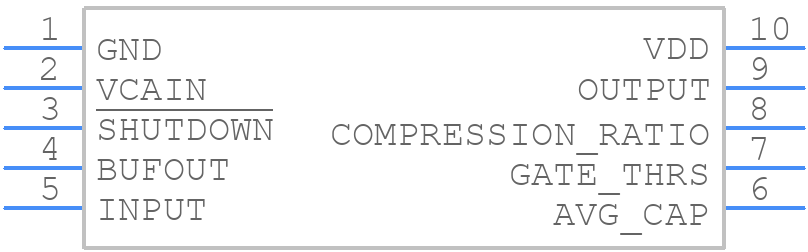

Use the download button to access the SSM2167-1RM-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM21,
or try a keyword search, such as Audio/Video Amplifiers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
