SSM3J130TU(TE85L) - Toshiba

Description: MOSFET Pch 20V 4.4A 0.0258ohm/4.5V UFM Toshiba SSM3J130TU(TE85L) P-channel MOSFET Transistor, 4.4 A, 20 V, 3-Pin UFM

Download SSM3J130TU(TE85L) Model

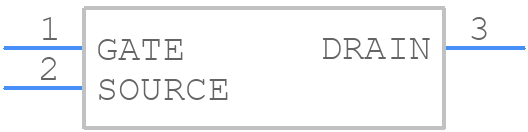

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SSM3J130TU(TE85L) - Toshiba PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SSM3J130TU(TE85L)
click to zoom

SSM3J130TU(TE85L) Details

  • Manufacturer Part Number:

    SSM3J130TU(TE85L)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    4.4 A

  • Drain-source On Resistance-Max:

    0.031 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    190 pF

  • JESD-30 Code:

    R-PDSO-F3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    0.8 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
