SSM5N15FE(TE85L,F) - Toshiba

Description: MOSFET N-Ch Sm Sig FET 0.1A 30V 2-in-1

Download SSM5N15FE(TE85L,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

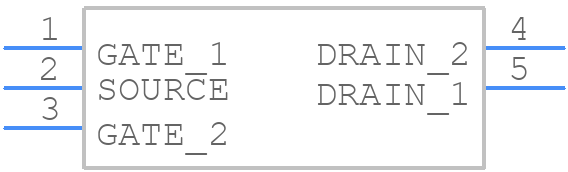

SSM5N15FE(TE85L,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
SSM5N15FE(TE85L,F) - Toshiba PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SON5-P-0.50
click to zoom
3D Models
SSM5N15FE(TE85L,F) - Toshiba - 3D model - SO Transistor Flat Lead - SON5-P-0.50
click to zoom

SSM5N15FE(TE85L,F) Details

  • Manufacturer Part Number:

    SSM5N15FE(TE85L,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Drain Current-Max (ID):

    0.1 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.15 W

  • Surface Mount:

    YES

  • Time@Peak Reflow Temperature-Max (s):

    30

SSM5N15FE(TE85L,F) Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • The device requires a bias voltage of 5V to 15V on the gate pin, and a current limit resistor to prevent excessive current. A 1kΩ to 10kΩ resistor is recommended.
  • The maximum allowed power dissipation for the SSM5N15FE is 125W, but this can be increased with proper heat sinking and thermal management.
  • Yes, the SSM5N15FE is suitable for high-frequency switching applications up to 100kHz, but the user must ensure proper PCB layout, decoupling, and snubber circuits to minimize ringing and EMI.
  • Toshiba recommends using a voltage clamp or TVS diode to protect the device from overvoltage conditions, and a current sense resistor or fuse to detect overcurrent conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM5N15FE(TE85L,F) Overview

Use the download button to access the SSM5N15FE(TE85L,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM5N, or try a keyword search, such as Small Signal Field-Effect Transistors
