Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended operating conditions and derating guidelines.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 4.5V to 5.5V.
Yes, the SSM6K407TU,LF is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly derated for the specific application.
Store the device in a dry, cool place, away from direct sunlight, with a relative humidity of 60% or less, and at a temperature range of -40°C to 125°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SSM6K407TU,LF Overview

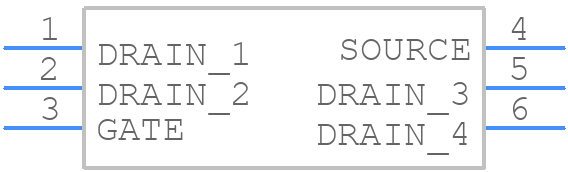

Use the download button to access the SSM6K407TU,LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM6K,
or try a keyword search, such as Small Signal Field-Effect Transistors
