SSM6L09FUTE85LF footprint, schematic symbol and 3D model by Toshiba

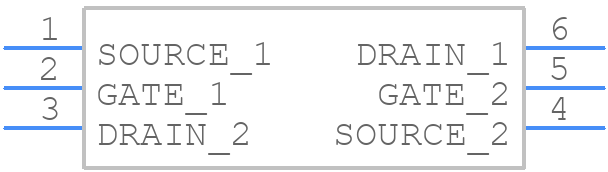

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSM6L09FUTE85LF
Part Number SSM6L09FUTE85LF
Manufacturer Toshiba
Pin Count 6
Part Category MOSFET (N-Channel)
Package Category SOT23 (6-Pin)
Footprint Name SOT23 (6-Pin) - 6lead
Released Date Mar 14, 2019
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

SSM6L09FUTE85LF Details

Manufacturer Part Number:
SSM6L09FUTE85LF
Pbfree Code:
Yes
Part Life Cycle Code:
Obsolete
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
0.4 A
Drain-source On Resistance-Max:
1.7 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
7 pF
JESD-30 Code:
R-PDSO-G6
Number of Elements:
2
Number of Terminals:
6
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
N-CHANNEL AND P-CHANNEL
Power Dissipation-Max (Abs):
0.3 W
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON

SSM6L09FUTE85LF Frequently Asked Questions (FAQs)

A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator and a bias resistor network can be used to achieve this.
Handle the device in an ESD-controlled environment, wear an ESD strap, and use ESD-safe tools and materials to prevent damage. Avoid touching the device pins or exposing it to static electricity.
Yes, the device is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards.
The optimal operating frequency depends on the specific application requirements. Consult the datasheet and application notes for guidance on selecting the optimal frequency. Simulation tools and SPICE models can also be used to optimize the design.
