SSM6L39TU,LF(T - Toshiba

Description: TOSHIBA - SSM6L39TU,LF(T - Dual MOSFET, N and P Channel, 20 V, 1.6 A, 0.087 ohm, SOT-363F, Surface Mount

Download SSM6L39TU,LF(T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

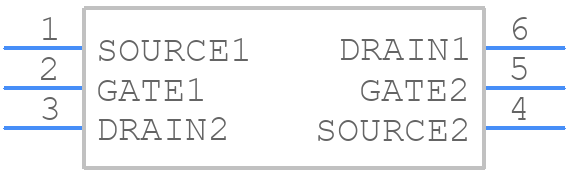

Symbol
SSM6L39TU,LF(T - Toshiba - PCB symbol
click to zoom
PCB Footprints
SSM6L39TU,LF(T - Toshiba PCB footprint - Other - Other - SSM6L39TU,LF(T-1
click to zoom
3D Models
SSM6L39TU,LF(T - Toshiba - 3D model - Other - SSM6L39TU,LF(T-1
click to zoom

SSM6L39TU,LF(T Details

  • Manufacturer Part Number:

    SSM6L39TU,LF(T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    1.6 A

  • Drain-source On Resistance-Max:

    0.139 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    37 pF

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    0.5 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SSM6L39TU,LF(T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for SSM6L39TU,LF is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum equivalent series resistance (ESR) of 1 ohm.
  • The maximum power dissipation for SSM6L39TU,LF is 1.5W. It is recommended to use a heat sink or thermal pad to ensure reliable operation.
  • Yes, SSM6L39TU,LF is rated for operation up to 125°C. However, it is recommended to derate the output current and power dissipation at higher temperatures to ensure reliable operation.
  • It is recommended to use overvoltage protection (OVP) and undervoltage protection (UVP) circuits to protect SSM6L39TU,LF from voltage transients and faults.
