SSM6N17FU(TE85L,F) - Toshiba

Description: MOSFET 2-in-1 MOSFET ID=100mA VDSS=50V

Download SSM6N17FU(TE85L,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

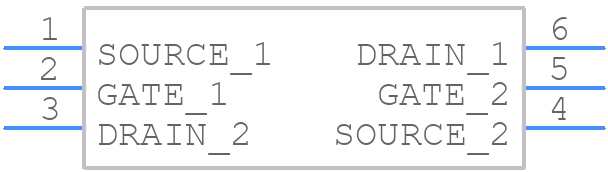

SSM6N17FU(TE85L,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
SSM6N17FU(TE85L,F) - Toshiba PCB footprint - Other - Other - 2-2J1C_2022
click to zoom
3D Models
SSM6N17FU(TE85L,F) - Toshiba - 3D model - Other - 2-2J1C_2022
click to zoom

SSM6N17FU(TE85L,F) Details

  • Manufacturer Part Number:

    SSM6N17FU(TE85L,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SC-70, 6 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR

  • DS Breakdown Voltage-Min:

    50 V

  • Drain Current-Max (ID):

    0.1 A

  • Drain-source On Resistance-Max:

    40 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    3 pF

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.2 W

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
