SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR
DS Breakdown Voltage-Min:
20 V
Drain Current-Max (ID):
0.18 A
Drain-source On Resistance-Max:
4 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
4.1 pF
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
0.15 W
Qualification Status:
Not Qualified
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
SSM6N35FE Frequently Asked Questions (FAQs)
Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a ground plane to reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended derating curves for the device. Additionally, ensure good thermal design, use a heat sink if necessary, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
The maximum safe operating area (SOA) for the SSM6N35FE is not explicitly stated in the datasheet. However, Toshiba recommends following the SOA curves provided in the application notes to ensure the device operates within a safe region and to prevent damage or degradation.
The SSM6N35FE is a commercial-grade device, and its reliability and quality may not meet the requirements of high-reliability or automotive applications. Toshiba offers other devices with enhanced reliability and quality, such as the SQM6N35FE, which may be more suitable for these applications.
The SSM6N35FE has an internal ESD protection diode, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SSM6N35FE Overview

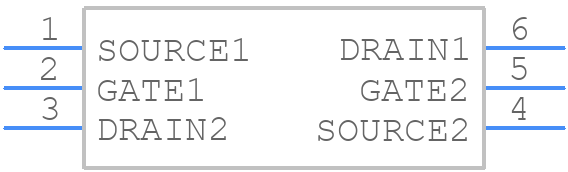

Use the download button to access the SSM6N35FE schematic symbol, PCB footprint, and 3D model.
