SSM6N56FE,LM - Toshiba

Description: Mosfet Array 20V 800mA 150mW Surface Mount ES6

Download SSM6N56FE,LM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

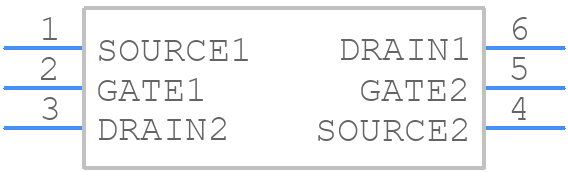

SSM6N56FE,LM - Toshiba - PCB symbol
click to zoom
PCB Footprints
SSM6N56FE,LM - Toshiba PCB footprint - Other - Other - SOT-563
click to zoom
3D Models
SSM6N56FE,LM - Toshiba - 3D model - Other - SOT-563
click to zoom

SSM6N56FE,LM Details

  • Manufacturer Part Number:

    SSM6N56FE,LM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.9

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    0.8 A

  • Drain-source On Resistance-Max:

    0.235 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    6 pF

  • JESD-30 Code:

    R-PDSO-F6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.25 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
