SSM6N77FE footprint, schematic symbol and 3D model by Toshiba

SSM6N77FE - Toshiba

Description: N-ch x 2 MOSFET, Low leakage current, 20 V, 0.25 A, 2.2 Ω@4.5V, SOT-563(ES6)

Download SSM6N77FE Model

Schematic
symbols

PCB
footprints

3D
models

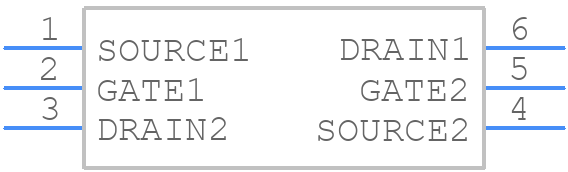

Symbol

click to zoom

PCB Footprints

SSM6N77FE - Toshiba PCB footprint - Other - Other - 2-2N1S/SON6-P-0.50S_2025-8

click to zoom

3D Models

SSM6N77FE - Toshiba - 3D model - Other - 2-2N1S/SON6-P-0.50S_2025-8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSM6N77FE
Part Number SSM6N77FE
Manufacturer Toshiba
Pin Count 6
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - 2-2N1S/SON6-P-0.50S_2025-8
Released Date Feb 5, 2025
Last Modified Date Feb 5, 2025 9:38 AM UTC
Pinout / Pin List Click Here (Member Only)

SSM6N77FE Details

Manufacturer Part Number:
SSM6N77FE
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Toshiba America Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SSM6N77FE Overview

Use the download button to access the SSM6N77FE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SSM6N, or try a keyword search, such as Small Signal Field-Effect Transistors
