ST10F276-6Q3 - STMicroelectronics

Description: 16-bit MCU with MAC unit, 832 Kbyte Flash memory and 68 Kbyte RAM

Download ST10F276-6Q3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ST10F276-6Q3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

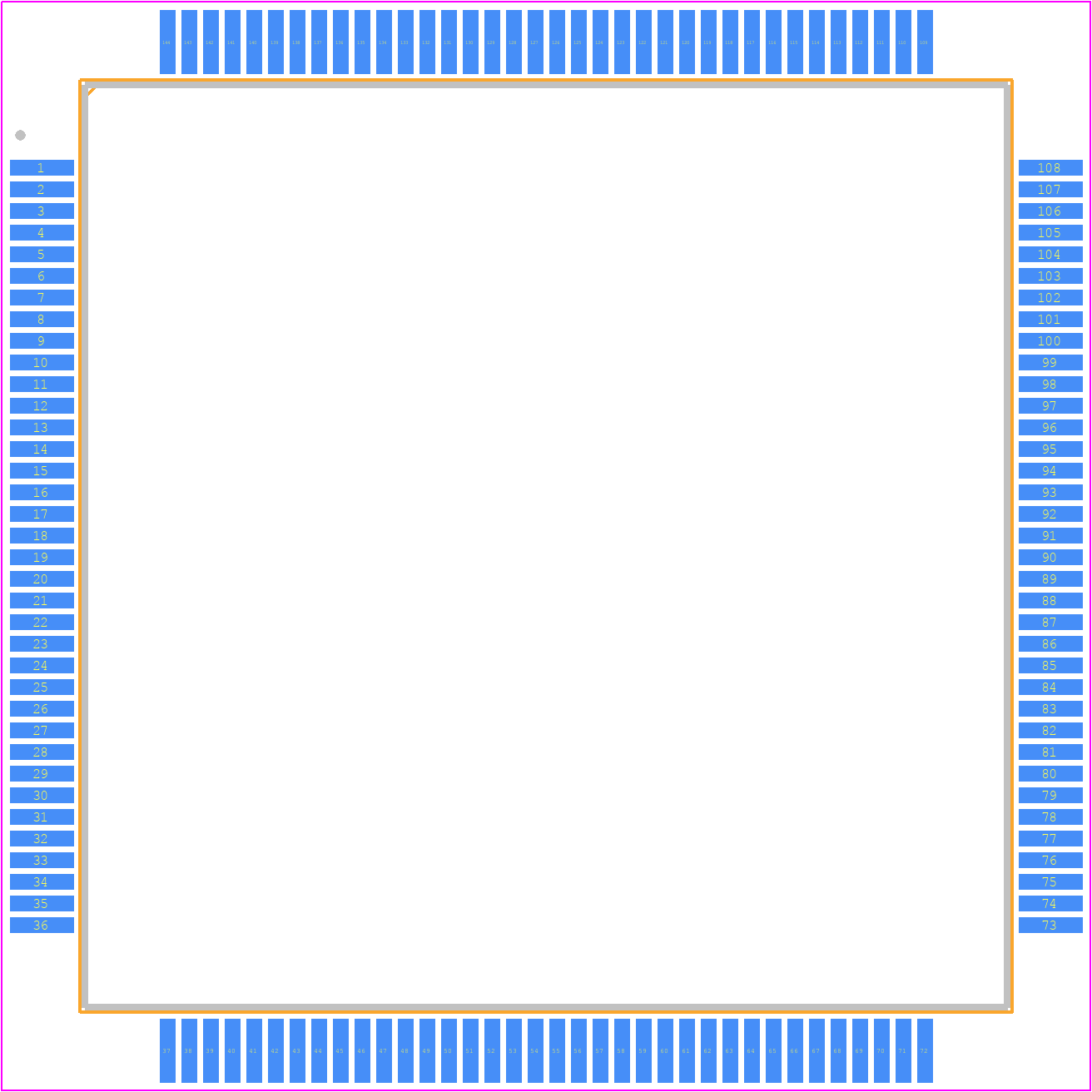

ST10F276-6Q3 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PQFP_2
click to zoom
3D Models
ST10F276-6Q3 - STMicroelectronics - 3D model - Quad Flat Packages - PQFP_2
click to zoom

ST10F276-6Q3 Details

  • Manufacturer Part Number:

    ST10F276-6Q3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    28 X 28 MM, 3.40 MM HEIGHT, 0.65 MM PITCH, ROHS COMPLIANT, PLASTIC, QFP-144

  • Pin Count:

    144

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    ST10

  • Clock Frequency-Max:

    12 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQFP-G144

  • JESD-609 Code:

    e3

  • Length:

    28 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    111

  • Number of Terminals:

    144

  • On Chip Program ROM Width:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP144,1.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    4.07 mm

  • Speed:

    64 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST10F276-6Q3 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ST10F276-6Q3 is -40°C to 125°C, as specified in the datasheet. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • To ensure reliable communication with the ST10F276-6Q3 over the CAN bus, make sure to follow the CAN bus specification (ISO 11898-1) and implement proper bus termination, signal shielding, and noise filtering. Additionally, ensure that the CAN bus transceiver is properly configured and matched to the ST10F276-6Q3's CAN interface.
  • The recommended power-up sequence for the ST10F276-6Q3 is to first apply the VCC supply voltage, followed by the VDDA and VDDIO supply voltages. This ensures that the internal voltage regulators and analog circuits are properly initialized before the device becomes operational.
  • To optimize the ST10F276-6Q3's power consumption for low-power applications, use the device's power-saving modes (e.g., sleep mode, idle mode), reduce the clock frequency, and minimize the use of peripherals and interfaces when not necessary. Additionally, consider using a low-power oscillator and optimizing the device's voltage regulator settings.
  • The maximum allowable voltage on the ST10F276-6Q3's analog inputs is VDDA + 0.3V, which is typically 5.5V for a 5V VDDA supply voltage. Exceeding this voltage may damage the device or affect its performance.
