STA515W - STMicroelectronics

Description: 40 V, 3 A, quad power half bridge,0 to 70 °C,PowerSSO36 EPD

Download STA515W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

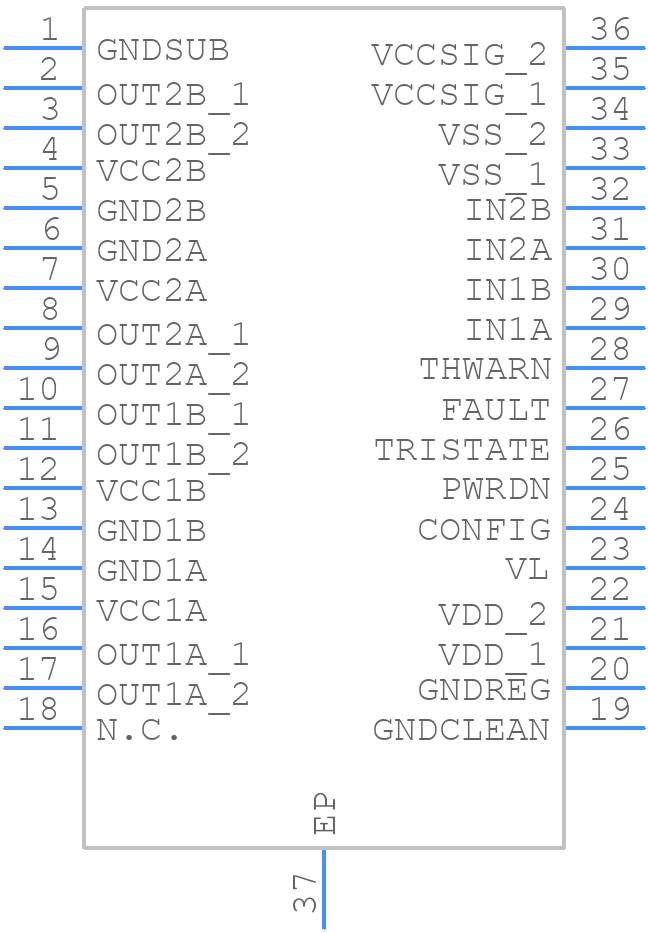

Symbol
STA515W - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA515W - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPD
click to zoom
3D Models
STA515W - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPD
click to zoom

STA515W Details

  • Manufacturer Part Number:

    STA515W

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

STA515W Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4849, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The STA515W can be configured for various wireless audio applications using the STMicroelectronics' software development kit (SDK) and the STA515W evaluation board. The SDK provides example code and documentation for configuring the device for different use cases, such as Bluetooth, Wi-Fi, and proprietary wireless audio protocols.
  • The maximum transmit power of the STA515W is +20 dBm (100 mW) for Bluetooth and Wi-Fi applications, and +15 dBm (30 mW) for proprietary wireless audio protocols. However, the actual transmit power may vary depending on the specific application, antenna design, and regulatory requirements.
  • The STA515W has a built-in audio processing unit (APU) that supports various audio codecs, including SBC, AAC, and aptX. The APU can be configured and controlled using the STA515W's registers and APIs. STMicroelectronics also provides example code and documentation for implementing audio processing and codec functionality in the STA515W SDK.
  • The STA515W has a low power consumption profile, with a typical current consumption of 40 mA in receive mode and 120 mA in transmit mode. The device also has several power-saving modes, including a low-power sleep mode, to minimize power consumption when not in use. The actual power consumption may vary depending on the specific application, operating frequency, and other factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA515W Overview

Use the download button to access the STA515W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA51, or try a keyword search, such as Audio/Video Amplifiers
