STA6940M - SANKEN ELECTRIC CO.

Description: Motor Driver Power MOSFET Parallel 18-ZIP

Download STA6940M Model

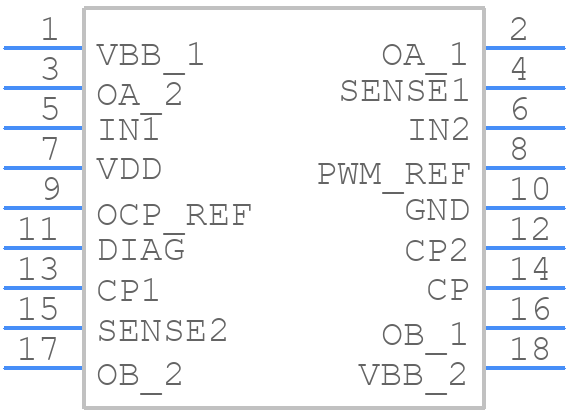

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

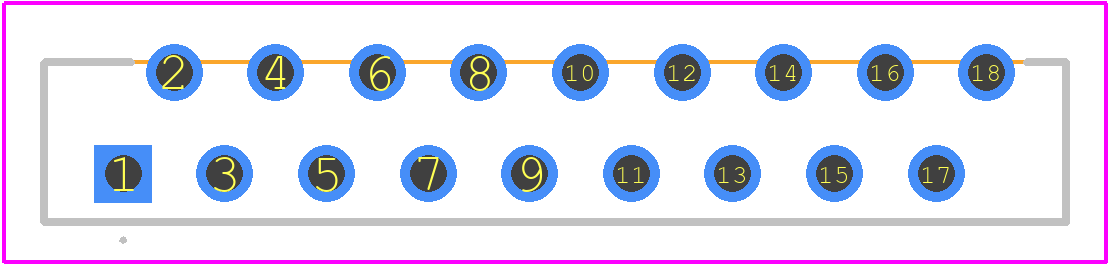

PCB Footprints
STA6940M - SANKEN ELECTRIC CO. PCB footprint - Other - Other - STA6940M-1
click to zoom
3D Models
STA6940M - SANKEN ELECTRIC CO.  - 3D model - Other - STA6940M-1
click to zoom

STA6940M Details

  • Manufacturer Part Number:

    STA6940M

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Sanken Electric Co Ltd

  • YTEOL:

    3

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XZFM-T18

  • Length:

    25.25 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP18,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    9.2 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4 mm

STA6940M Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component away from heat sources and ensure good airflow.
  • Implement a heat sink or thermal interface material, ensure good airflow, and consider derating the device's power handling at high temperatures.
  • Exceeding Tj can lead to reduced lifespan, increased thermal resistance, and potentially catastrophic failure. Ensure proper thermal management to stay within the recommended Tj range.
  • Implement proper PCB design and layout, use ESD protection devices, and follow handling and storage guidelines to prevent EOS and ESD damage.
  • Follow the recommended soldering profile: 260°C peak temperature, 10-30 seconds dwell time, and 1-2°C/s ramp rate. For rework, use a low-temperature soldering iron and avoid applying excessive force.
