STA7360 - STMicroelectronics

Description: 20 W bridge/stereo audio amplifier with clipping detector

Download STA7360 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

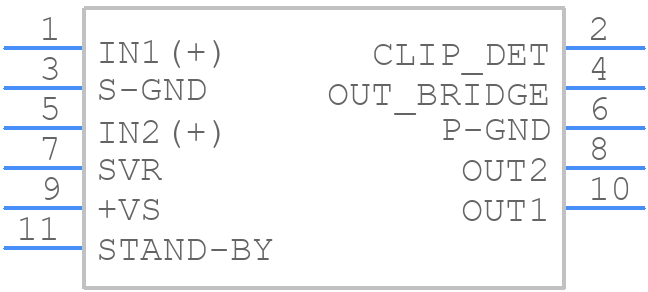

STA7360 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

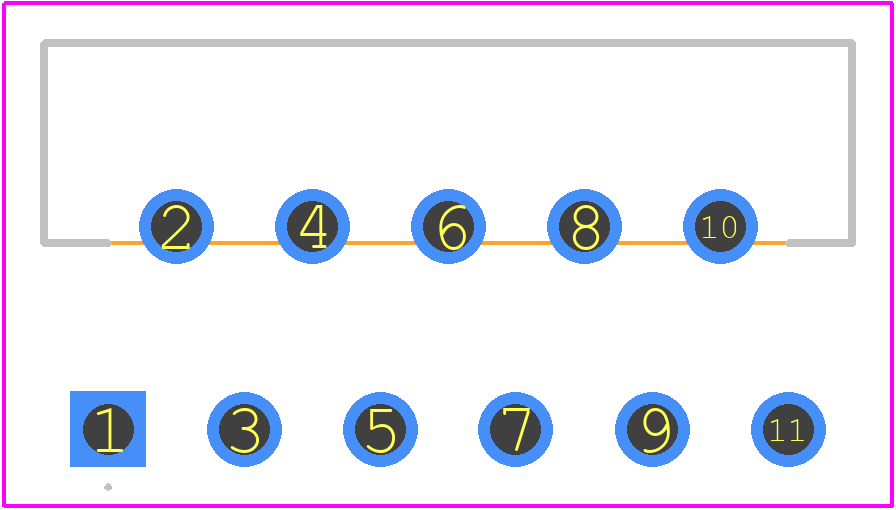

STA7360 - STMicroelectronics PCB footprint - Other - Other - Multiwatt11 (Vertical)-2025
click to zoom
3D Models
STA7360 - STMicroelectronics - 3D model - Other - Multiwatt11 (Vertical)-2025
click to zoom

STA7360 Details

  • Manufacturer Part Number:

    STA7360

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    20 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T11

  • JESD-609 Code:

    e3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Output Power-Nom:

    11 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    120 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

STA7360 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first power up the analog supply (VCCA) and then the digital supply (VCCD). This ensures that the analog circuitry is stable before the digital circuitry is enabled.
  • The STA7360 is a highly configurable device, and the configuration depends on the specific audio application. Refer to the application notes and evaluation boards provided by STMicroelectronics for guidance on configuring the device for your specific use case.
  • The maximum power handling capability of the STA7360 depends on the output stage configuration and the external components used. In general, the device can handle up to 20W per channel in a stereo configuration, but this can be increased to 40W per channel in a mono configuration.
  • To troubleshoot issues with the STA7360, start by checking the power supply and grounding of the device, as well as the quality of the input audio signal. Also, verify that the device is properly configured and that the correct output stage is enabled. If the issue persists, refer to the datasheet and application notes for guidance on troubleshooting and debugging techniques.
  • Yes, the STA7360 is AEC-Q100 qualified and can be used in automotive audio applications. However, it is essential to ensure that the device is properly qualified and validated for the specific automotive application, and that it meets the required safety and reliability standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA7360 Overview

Use the download button to access the STA7360 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA73, or try a keyword search, such as Audio/Video Amplifiers
