STBCFG01JR footprint, schematic symbol and 3D model by STMicroelectronics

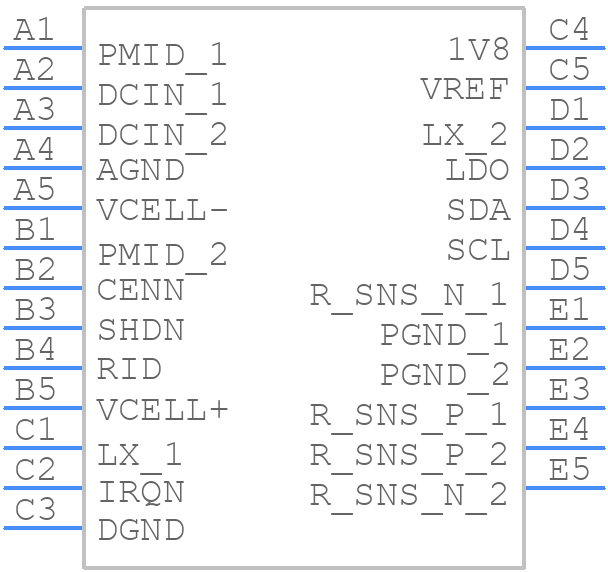

Symbol

click to zoom

PCB Footprints

STBCFG01JR - STMicroelectronics PCB footprint - BGA - BGA - Flip Chip 25 (2.3 x 2.2 mm)

click to zoom

3D Models

STBCFG01JR - STMicroelectronics - 3D model - BGA - Flip Chip 25 (2.3 x 2.2 mm)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STBCFG01JR
Part Number STBCFG01JR
Manufacturer STMicroelectronics
Pin Count 25
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - Flip Chip 25 (2.3 x 2.2 mm)
Released Date Oct 13, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

STBCFG01JR Details

Manufacturer Part Number:
STBCFG01JR
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
PACKAGE-25
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Additional Feature:
Thermal Shutdown:165C
Adjustable Threshold:
YES
Analog IC - Other Type:
LINEAR BATTERY CHARGER
JESD-30 Code:
R-PBGA-B25
Length:
2.28 mm
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
25
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Seated Height-Max:
0.605 mm
Supply Current-Max (Isup):
0.8 mA
Supply Voltage-Max (Vsup):
5.95 V
Supply Voltage-Min (Vsup):
3.78 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Threshold Voltage-Nom:
+3.6V
Width:
2.19 mm

STBCFG01JR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power and ground traces as short as possible and use a common mode filter to reduce EMI.
Use the STMicroelectronics configuration tool, such as the STBCFG01JR Configurator, to generate the configuration file and load it into the device. Refer to the user manual for specific instructions.
The STBCFG01JR is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so ensure proper thermal management and heat dissipation in your design.
Yes, the STBCFG01JR is suitable for battery-powered devices due to its low power consumption. However, ensure proper power management and consider using a low-dropout regulator to minimize power consumption.
Use a logic analyzer or oscilloscope to monitor the device's signals and verify proper configuration. Check the device's status registers and error flags to identify the source of the issue. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

Community Provided

System Verified

Community Approved

STBCFG01JR Overview

Use the download button to access the STBCFG01JR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like STBCF, or try a keyword search, such as Power Management Circuits
