STC3115AIJT - STMicroelectronics

Description: STMICROELECTRONICS - STC3115AIJT - BATTERY FUEL GAUGE, LI-ION, CSP-10

Download STC3115AIJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

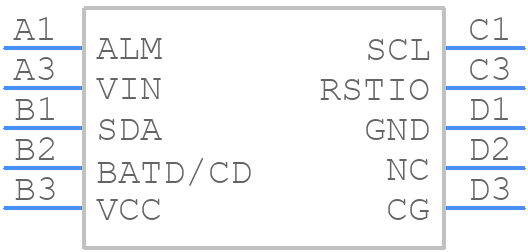

STC3115AIJT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STC3115AIJT - STMicroelectronics PCB footprint - Other - Other - STC3115AIJT-1
click to zoom
3D Models
STC3115AIJT - STMicroelectronics - 3D model - Other - STC3115AIJT-1
click to zoom

STC3115AIJT Details

  • Manufacturer Part Number:

    STC3115AIJT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1.40 X 2.04 MM, ROHS COMPLIANT, CSP-10

  • Country Of Origin:

    France

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PBGA-B10

  • Length:

    2.01 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA10,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.705 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.37 mm

STC3115AIJT Frequently Asked Questions (FAQs)

  • A good PCB layout for the STC3115AIJT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power supply, use a high-quality voltage regulator with low output impedance, and decouple the power pins with 10uF and 100nF capacitors. Also, ensure the input voltage is within the recommended range of 2.7V to 5.5V.
  • The maximum clock frequency for the STC3115AIJT is 32 kHz, which is the internal oscillator frequency. However, the device can also be driven by an external clock source up to 1 MHz.
  • To configure the STC3115AIJT for low-power mode, set the PD bit in the Power Management Register (PMR) to 1. This will put the device in shutdown mode, reducing the current consumption to less than 1uA.
  • The internal voltage reference in the STC3115AIJT has an accuracy of ±1.5% over the entire operating temperature range of -40°C to 125°C.
