STCN75M2E - STMicroelectronics

Description: STCN75M2E, 9bit Temperature Sensor ±3°C Serial-I2C 2.7 to 5.5V 8-Pin SOIC

Download STCN75M2E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

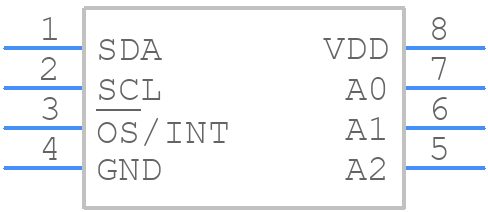

Symbol
STCN75M2E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STCN75M2E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSV358AIST
click to zoom
3D Models
STCN75M2E - STMicroelectronics - 3D model - Small Outline Packages - TSV358AIST
click to zoom

STCN75M2E Details

  • Manufacturer Part Number:

    STCN75M2E

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-8

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    THERMAL WATCHDOG

  • Body Breadth:

    3.8 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.8 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    9

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.15 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

STCN75M2E Frequently Asked Questions (FAQs)

  • The STCN75M2E can operate from -40°C to 125°C, but the accuracy of the temperature measurement is guaranteed from -20°C to 100°C.
  • The STCN75M2E does not require calibration, as it is factory-calibrated. However, you can perform a one-point calibration by writing a correction value to the device's registers to improve accuracy.
  • The typical current consumption of the STCN75M2E is around 1.5 μA in normal operation mode, but it can be as low as 0.5 μA in shutdown mode.
  • Yes, the STCN75M2E has built-in noise filtering and is designed to operate in noisy environments. However, it's still recommended to use proper PCB design and layout techniques to minimize noise coupling.
  • The STCN75M2E can be interfaced with a microcontroller using the I2C bus. You'll need to connect the SCL and SDA pins to the microcontroller's I2C pins and use a suitable I2C library to communicate with the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STCN75M2E Overview

Use the download button to access the STCN75M2E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STCN7, or try a keyword search, such as Temperature Sensors
