STDS75M2F - STMicroelectronics

Description: Digital temperature sensor and thermal watchdog SO8 , 125µA , 2.7V to 5.5V , 150ms , –55°C to +125°C

Download STDS75M2F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

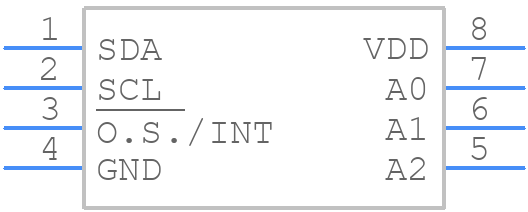

Symbol
STDS75M2F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STDS75M2F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8_2026
click to zoom
3D Models
STDS75M2F - STMicroelectronics - 3D model - Small Outline Packages - SO8_2026
click to zoom

STDS75M2F Details

  • Manufacturer Part Number:

    STDS75M2F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-8

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    CMOS COMPATIBLE, THERMAL WATCHDOG

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    9

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.15 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

STDS75M2F Frequently Asked Questions (FAQs)

  • The STDS75M2F can operate from -40°C to 125°C, but the accuracy of the temperature measurement is guaranteed from -20°C to 100°C.
  • The STDS75M2F does not require calibration. It is factory-calibrated and provides accurate temperature measurements without the need for additional calibration.
  • The STDS75M2F provides a temperature measurement resolution of 0.0625°C (1/16°C).
  • Yes, the STDS75M2F can measure temperatures below 0°C, but the accuracy of the measurement may be affected. For temperatures below -20°C, the accuracy is not guaranteed.
  • The STDS75M2F communicates with a microcontroller through a standard I2C interface. The device has a 7-bit address, and the microcontroller can read the temperature data from the device using the I2C protocol.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STDS75M2F Overview

Use the download button to access the STDS75M2F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STDS7, or try a keyword search, such as Temperature Sensors
