STDS75M2E - STMicroelectronics

Description: Digital temperature sensor and thermal watchdog SO8 , 125µA , 2.7V to 5.5V , –55°C to +125°C

Download STDS75M2E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

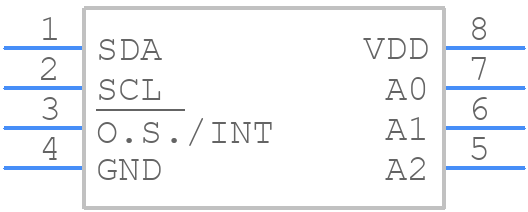

Symbol
STDS75M2E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STDS75M2E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8_2026
click to zoom
3D Models
STDS75M2E - STMicroelectronics - 3D model - Small Outline Packages - SO8_2026
click to zoom

STDS75M2E Details

  • Manufacturer Part Number:

    STDS75M2E

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-8

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    CMOS COMPATIBLE, THERMAL WATCHDOG

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    9

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.15 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

STDS75M2E Frequently Asked Questions (FAQs)

  • The STDS75M2E can operate from -40°C to 125°C, but the accuracy of the temperature measurement may vary outside the range of -20°C to 100°C.
  • The STDS75M2E does not require calibration for typical temperature measurement applications. However, for high-accuracy measurements, you can perform a one-point calibration by writing a correction value to the device's internal registers. Refer to the application note AN3963 for more information.
  • The maximum current consumption of the STDS75M2E is 1.5 mA, but this can be reduced to 10 μA in low-power mode. The device also has a shutdown mode that reduces the current consumption to 0.1 μA.
  • Yes, the STDS75M2E can be used for remote temperature sensing applications. The device has a remote temperature sensing capability that allows it to measure the temperature of a remote diode-connected transistor or diode. Refer to the application note AN3963 for more information.
  • The STDS75M2E can be interfaced with a microcontroller using the I2C or SMBus interface. The device has a 7-bit or 10-bit address, and the interface protocol is compatible with most microcontrollers. Refer to the datasheet for more information on the interface protocol.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STDS75M2E Overview

Use the download button to access the STDS75M2E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STDS7, or try a keyword search, such as Temperature Sensors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
