STCN75M2F - STMicroelectronics

Description: Temperature Sensor Digital, Local -55°C ~ 125°C 9 b 8-SOIC

Download STCN75M2F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

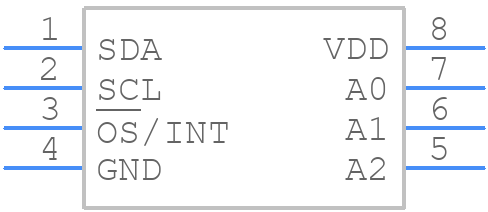

Symbol
STCN75M2F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STCN75M2F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 8_2025-1.5
click to zoom
3D Models
STCN75M2F - STMicroelectronics - 3D model - Small Outline Packages - SO 8_2025-1.5
click to zoom

STCN75M2F Details

  • Manufacturer Part Number:

    STCN75M2F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-8

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    CMOS COMPATIBLE, THERMAL WATCHDOG

  • Body Breadth:

    3.8 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.8 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    9

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.15 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

STCN75M2F Frequently Asked Questions (FAQs)

  • The STCN75M2F can operate from -40°C to 125°C, but the accuracy of the temperature measurement is guaranteed from -20°C to 100°C.
  • The STCN75M2F does not require calibration. It is factory-calibrated and provides accurate temperature measurements without the need for additional calibration.
  • The typical current consumption of the STCN75M2F is around 10 μA, but it can vary depending on the operating frequency and mode.
  • Yes, the STCN75M2F is designed to operate in high-vibration environments. It is qualified for automotive and industrial applications, which typically involve high levels of vibration.
  • The STCN75M2F can be interfaced with a microcontroller using the I2C or SMBus interface. The device has a 7-bit address, and the interface protocol is compatible with most microcontrollers.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STCN75M2F Overview

Use the download button to access the STCN75M2F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STCN7, or try a keyword search, such as Temperature Sensors
