STEF12EPUR - STMicroelectronics

Description: Hot Swap Voltage Controllers POWER MANAGEMENT

Download STEF12EPUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

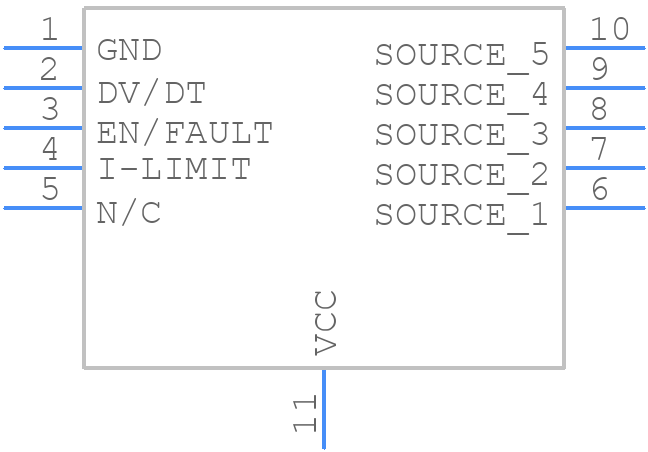

STEF12EPUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEF12EPUR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - STEF12EPUR
click to zoom
3D Models
STEF12EPUR - STMicroelectronics - 3D model - Small Outline No-lead - STEF12EPUR
click to zoom

STEF12EPUR Details

  • Manufacturer Part Number:

    STEF12EPUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    VDFPN 10 3x3x1.0

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Additional Feature:

    CURRENT LIMIT:5.5A; THERMAL SHUTDOWN:165C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Min (Vsup):

    7.6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    8.5

  • Width:

    3 mm

STEF12EPUR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet, and to ensure good thermal conduction between the device and the PCB.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor with a value of 10-22uF, depending on the specific application requirements, to ensure optimal performance and stability.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors for correct values and connections. Also, verify that the device is properly decoupled and that the PCB layout is correct.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor with a value of 10-47uF, depending on the specific application requirements, to ensure optimal performance and stability.
