STEF12SPUR - STMicroelectronics

Description: Current & Power Monitors & Regulators POWER MANAGEMENT

Download STEF12SPUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

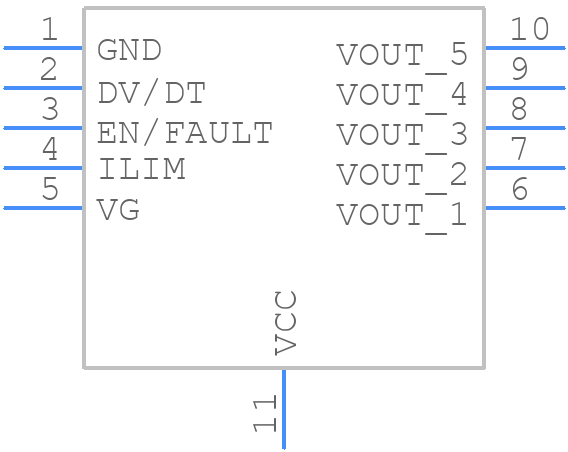

STEF12SPUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEF12SPUR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10 (3x3)
click to zoom
3D Models
STEF12SPUR - STMicroelectronics - 3D model - Small Outline No-lead - DFN10 (3x3)
click to zoom

STEF12SPUR Details

  • Manufacturer Part Number:

    STEF12SPUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-05-29

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:5.5A; THERMAL SHUTDOWN:165C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    13.8 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

STEF12SPUR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the STEF12SPUR application note (AN5323). It's essential to follow this layout to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • The STEF12SPUR datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Choose components with the specified values and characteristics to ensure proper operation and minimize noise.
  • The STEF12SPUR can operate from -40°C to 125°C (junction temperature). However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and design for the intended operating temperature range.
  • The STEF12SPUR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the VIN pin and the GND pin. The device will detect overcurrent conditions and shut down if the current exceeds the programmed threshold.
  • The EN (enable) pin is used to enable or disable the STEF12SPUR. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. Use the EN pin to control the power-on and power-off sequences in your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STEF12SPUR Overview

Use the download button to access the STEF12SPUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STEF1, or try a keyword search, such as Power Management Circuits
