STEF4SPUR - STMicroelectronics

Description: Hot Swap Voltage Controllers Electronic fuse 4V 3.6A 40mW 4.5V

Download STEF4SPUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

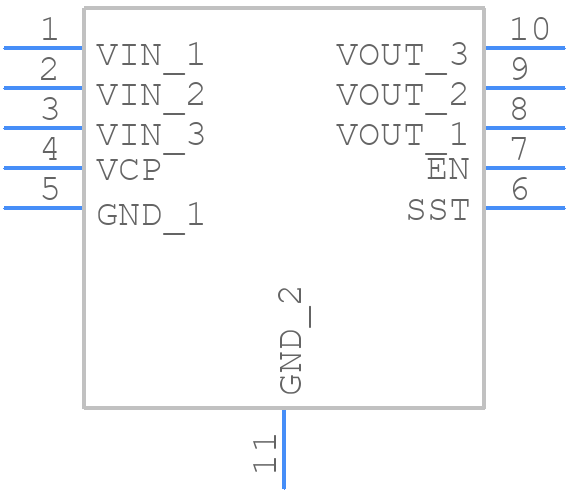

Symbol
STEF4SPUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEF4SPUR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN6 3x3 - 10L
click to zoom
3D Models
STEF4SPUR - STMicroelectronics - 3D model - Small Outline No-lead - DFN6 3x3 - 10L
click to zoom

STEF4SPUR Details

  • Manufacturer Part Number:

    STEF4SPUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

STEF4SPUR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the STEF4SPUR. The device should be placed near the antenna, and the PCB should be designed to minimize electromagnetic interference (EMI).
  • The STEF4SPUR requires calibration for optimal performance. STMicroelectronics provides a calibration procedure in the application note AN5271, which involves measuring the device's frequency response and adjusting the internal calibration registers accordingly.
  • The STEF4SPUR is rated for operation from -40°C to 125°C, but the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation in the system design.
  • To troubleshoot SPI interface issues, check the clock frequency, polarity, and phase settings. Ensure the master clock is within the recommended frequency range (10-50 MHz). Also, verify the correct pin connections and signal integrity on the PCB.
  • STMicroelectronics recommends using a low-ESR capacitor (e.g., 100 nF) and a ferrite bead or a pi-filter to decouple the power supply. Additionally, a 10-100 nF capacitor can be used to filter the power supply noise.
