STEF512GR - STMicroelectronics

Description: Dual electronic fuse for 5 V and 12 V rails

Download STEF512GR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

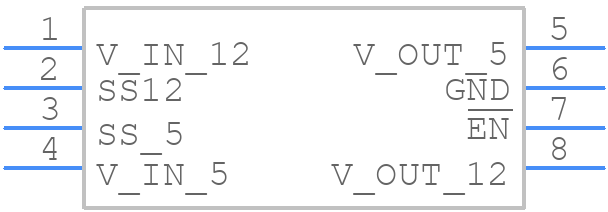

Symbol
STEF512GR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEF512GR - STMicroelectronics PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TSOT23-8L_2021
click to zoom
3D Models
STEF512GR - STMicroelectronics - 3D model - SOT23 (8-Pin) - TSOT23-8L_2021
click to zoom

STEF512GR Details

  • Manufacturer Part Number:

    STEF512GR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-03-02

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO HAS 12V SUPPLY

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.9 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

STEF512GR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the STEF512GR application note (AN5275) to ensure optimal thermal performance. The layout includes a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently.
  • The input capacitor selection depends on the input voltage, frequency, and ripple current. A general guideline is to choose a capacitor with a voltage rating higher than the maximum input voltage, a capacitance value between 10uF to 100uF, and a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
  • The maximum allowed voltage drop across the internal voltage regulator is 3.3V - 2.5V = 0.8V. Exceeding this voltage drop may affect the device's performance and reliability.
  • The STEF512GR is rated for operation up to 125°C (TJ). However, it's essential to ensure proper thermal management, such as heat sinking and airflow, to prevent overheating and maintain reliability.
  • To troubleshoot issues with the internal oscillator, check the oscillator pin (OSC_IN) for proper connection and signal integrity. Ensure the oscillator frequency is within the recommended range (1-10 MHz) and that the oscillator circuit is properly biased.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STEF512GR Overview

Use the download button to access the STEF512GR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STEF5, or try a keyword search, such as Power Management Circuits
