STGB30H60DFB - STMicroelectronics

Description: IGBT Transistors Trench gate field-stop IGBT, HB series 600 V, 30 A high speed

Download STGB30H60DFB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STGB30H60DFB - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

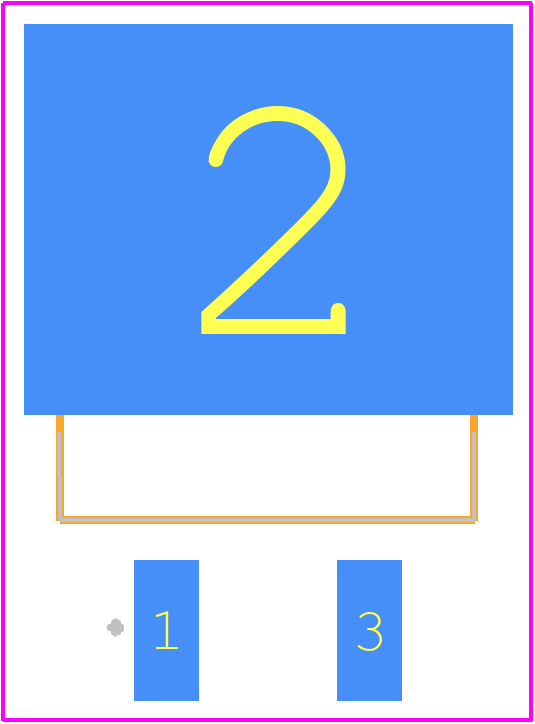

STGB30H60DFB - STMicroelectronics PCB footprint - Other - Other - STGB14NC60KDT4-1
click to zoom
3D Models
STGB30H60DFB - STMicroelectronics - 3D model - Other - STGB14NC60KDT4-1
click to zoom

STGB30H60DFB Details

  • Manufacturer Part Number:

    STGB30H60DFB

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    60 A

  • Collector-Emitter Voltage-Max:

    600 V

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    223 ns

  • Turn-on Time-Nom (ton):

    51.1 ns

STGB30H60DFB Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the STGB30H60DFB can withstand is 175°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 150°C for reliable operation.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 1°C/W is recommended. Additionally, ensure good airflow around the device and avoid blocking the heat sink fins.
  • The recommended gate resistor value for the STGB30H60DFB is between 10 ohms and 100 ohms, depending on the specific application and switching frequency. A higher gate resistor value can help reduce electromagnetic interference (EMI).
  • Yes, the STGB30H60DFB is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and assembly guidelines to ensure the device operates within its specifications.
  • To protect the STGB30H60DFB from overvoltage and overcurrent, use a voltage clamp or a transient voltage suppressor (TVS) to limit the voltage across the device. Additionally, consider using a current sense resistor and a fuse to detect and respond to overcurrent conditions.
