STGB30V60F footprint, schematic symbol and 3D model by STMicroelectronics

Symbol

click to zoom

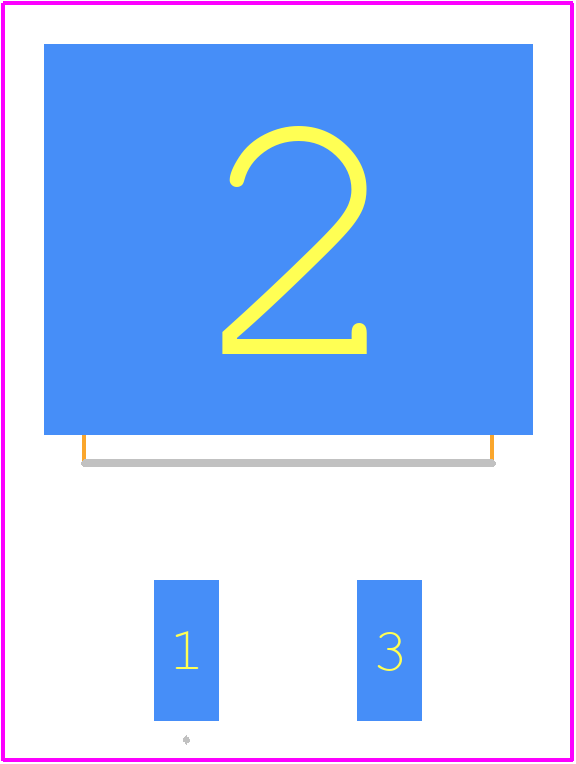

PCB Footprints

STGB30V60F - STMicroelectronics PCB footprint - Other - Other - STGB30V60F-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STGB30V60F
Part Number STGB30V60F
Manufacturer STMicroelectronics
Pin Count 3
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - STGB30V60F-2
Released Date Oct 4, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

STGB30V60F Details

Manufacturer Part Number:
STGB30V60F
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
STMicroelectronics
YTEOL:
0
Case Connection:
COLLECTOR
Collector Current-Max (IC):
60 A
Collector-Emitter Voltage-Max:
600 V
Configuration:
SINGLE
Gate-Emitter Thr Voltage-Max:
7 V
Gate-Emitter Voltage-Max:
20 V
JEDEC-95 Code:
TO-263AB
JESD-30 Code:
R-PSSO-G2
Number of Elements:
1
Number of Terminals:
2
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR, 13 INCH
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
260 W
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Transistor Application:
POWER CONTROL
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
225 ns
Turn-on Time-Nom (ton):
59 ns
VCEsat-Max:
2.3 V

STGB30V60F Frequently Asked Questions (FAQs)

The maximum junction temperature that the STGB30V60F can withstand is 175°C.
To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, the device should be mounted on a PCB with a thermal via array to dissipate heat efficiently.
The recommended gate resistor value for the STGB30V60F is between 10Ω and 100Ω, depending on the specific application and switching frequency.
Yes, the STGB30V60F is suitable for high-reliability applications due to its robust design and manufacturing process. However, it is essential to follow proper design and assembly guidelines to ensure the device operates within its specified parameters.
To protect the STGB30V60F from ESD, it is recommended to handle the device in an ESD-controlled environment, use ESD-protective packaging, and follow proper handling and assembly procedures.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STGB30V60F Overview

Use the download button to access the STGB30V60F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STGB3, or try a keyword search, such as IGBTs
