STGB50H65FB2 footprint, schematic symbol and 3D model by STMicroelectronics

Symbol

click to zoom

PCB Footprints

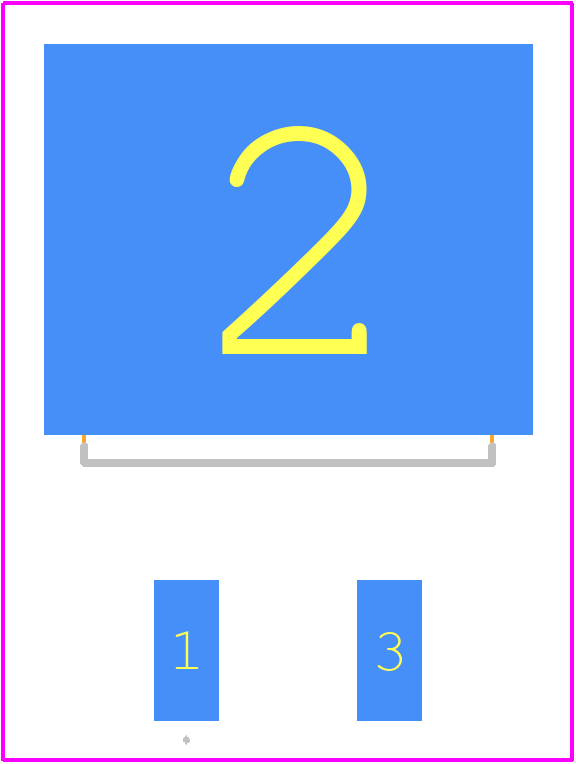

STGB50H65FB2 - STMicroelectronics PCB footprint - Other - Other - D²PAK_2022-22

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STGB50H65FB2
Part Number STGB50H65FB2
Manufacturer STMicroelectronics
Pin Count 3
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - D²PAK_2022-22
Released Date Oct 4, 2022
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

STGB50H65FB2 Details

Manufacturer Part Number:
STGB50H65FB2
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Factory Lead Time:
15 Weeks
Date Of Intro:
2020-03-19
Manufacturer:
STMicroelectronics
YTEOL:
5.82
Case Connection:
COLLECTOR
Collector Current-Max (IC):
86 A
Collector-Emitter Voltage-Max:
650 V
Configuration:
SINGLE
Gate-Emitter Thr Voltage-Max:
7 V
Gate-Emitter Voltage-Max:
20 V
JEDEC-95 Code:
TO-263AB
JESD-30 Code:
R-PSSO-G2
Number of Elements:
1
Number of Terminals:
2
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR, 13 INCH
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
272 W
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Transistor Application:
POWER CONTROL
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
225 ns
Turn-on Time-Nom (ton):
41 ns
VCEsat-Max:
2 V

STGB50H65FB2 Frequently Asked Questions (FAQs)

The maximum junction temperature (Tj) for the STGB50H65FB2 is 175°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
The maximum current rating for the STGB50H65FB2 depends on the operating conditions, such as voltage, temperature, and package type. Refer to the datasheet's thermal resistance and current rating tables to calculate the maximum current rating for your specific application.
The recommended gate resistor value for the STGB50H65FB2 depends on the specific application and switching frequency. A general guideline is to use a gate resistor between 10 ohms and 100 ohms to ensure proper switching and minimize ringing.
Yes, the STGB50H65FB2 is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching losses, thermal performance, and layout parasitics to ensure reliable operation.
To ensure proper cooling, follow the recommended thermal design guidelines in the datasheet, including using a heat sink, thermal interface material, and optimizing the PCB layout for thermal dissipation.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STGB50H65FB2 Overview

Use the download button to access the STGB50H65FB2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STGB5, or try a keyword search, such as IGBTs
