STGH50H65B2-7AG footprint, schematic symbol and 3D model by STMicroelectronics

Symbol

click to zoom

PCB Footprints

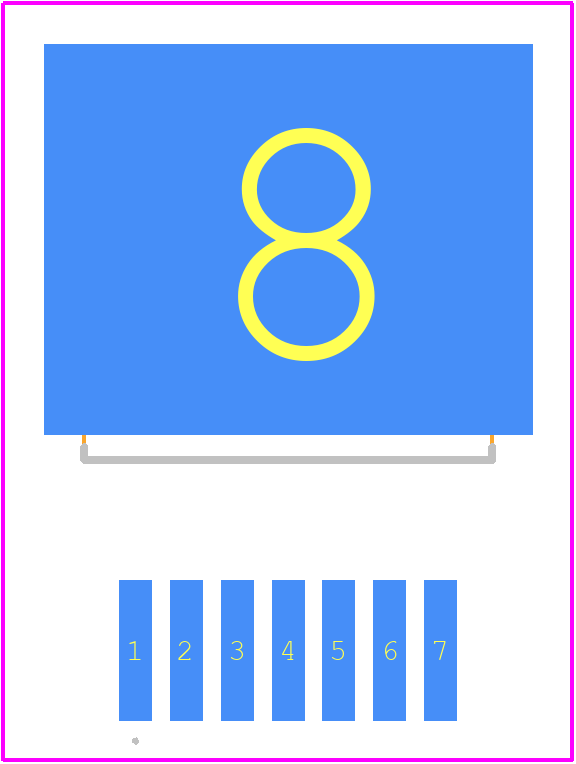

STGH50H65B2-7AG - STMicroelectronics PCB footprint - Other - Other - H²PAK-7_2024-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STGH50H65B2-7AG
Part Number STGH50H65B2-7AG
Manufacturer STMicroelectronics
Pin Count 8
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - H²PAK-7_2024-5
Released Date Aug 22, 2024
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

STGH50H65B2-7AG Details

Manufacturer Part Number:
STGH50H65B2-7AG
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
STMicroelectronics
YTEOL:
9

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STGH50H65B2-7AG Overview

Use the download button to access the STGH50H65B2-7AG schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STGH5, or try a keyword search, such as IGBTs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
