STGIB20M60S-L - STMicroelectronics

Description: SLLIMM 2nd series IPM, 3-phase inverter, 25 A, 600 V short-circuit rugged IGBTs

Download STGIB20M60S-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

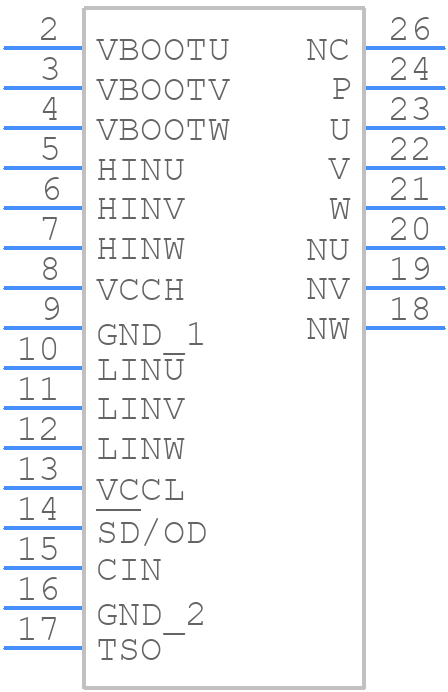

Symbol
STGIB20M60S-L - STMicroelectronics - PCB symbol
click to zoom

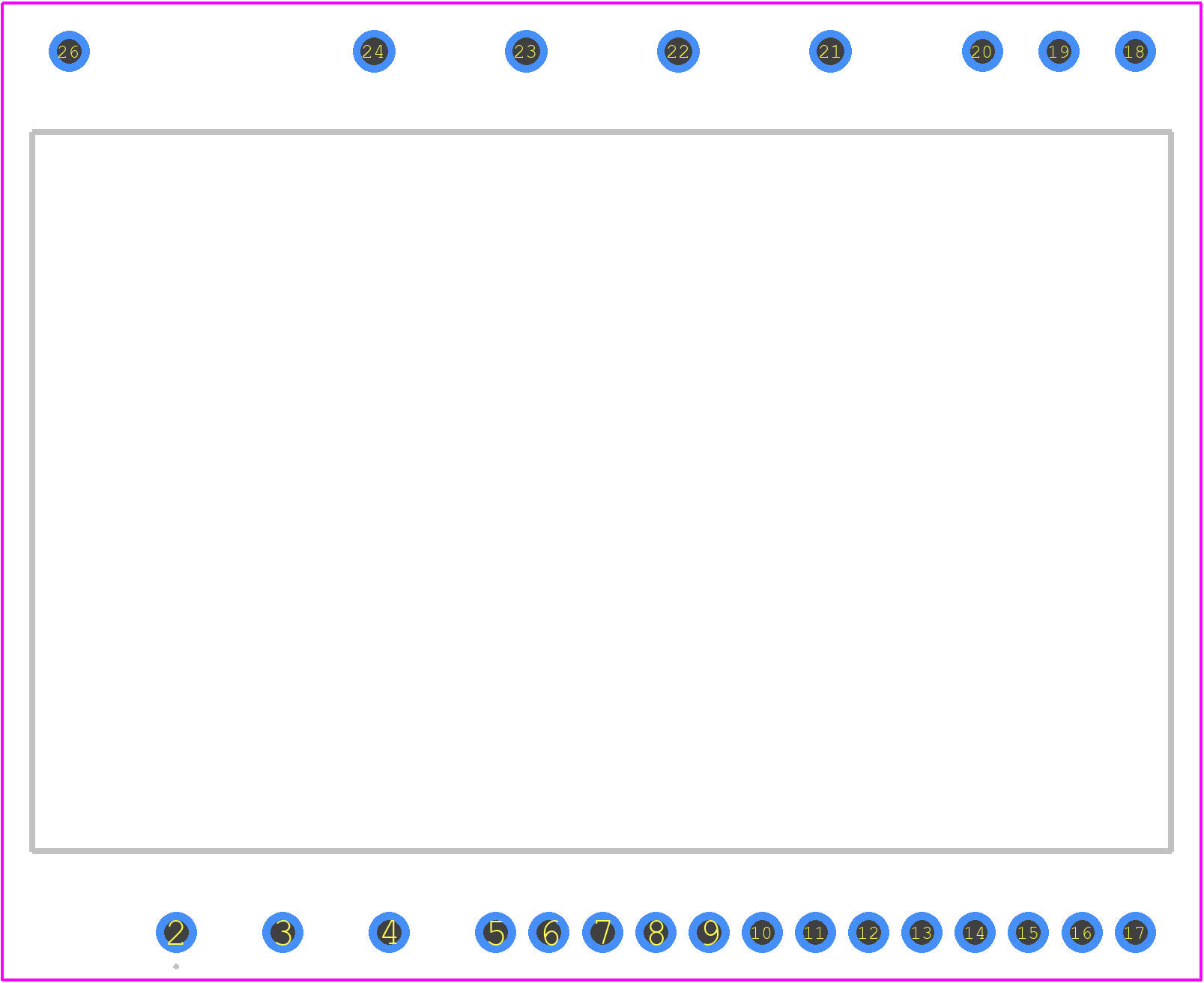

PCB Footprints
STGIB20M60S-L - STMicroelectronics PCB footprint - Other - Other - STGIB20M60S-L-2
click to zoom
3D Models
STGIB20M60S-L - STMicroelectronics - 3D model - Other - STGIB20M60S-L-2
click to zoom

STGIB20M60S-L Details

  • Manufacturer Part Number:

    STGIB20M60S-L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XZFM-T26

  • JESD-609 Code:

    e3

  • Length:

    38 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

  • Width:

    24 mm

STGIB20M60S-L Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the STGIB20M60S-L is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • The thermal resistance (Rth) for the STGIB20M60S-L can be calculated using the formula: Rth = (Tj - Ta) / Pd, where Tj is the junction temperature, Ta is the ambient temperature, and Pd is the power dissipation. The datasheet provides the thermal resistance values for different packages and mounting conditions.
  • The recommended gate drive voltage for the STGIB20M60S-L is between 10V and 15V, with a maximum voltage of 20V. A higher gate drive voltage can improve switching performance, but it also increases power consumption and EMI.
  • To ensure proper cooling, it's essential to provide a good thermal path from the device to a heat sink or a cooling system. Use a thermal interface material (TIM) with a low thermal resistance, and ensure the heat sink is properly mounted and secured. Additionally, consider using a fan or a liquid cooling system for high-power applications.
  • The STGIB20M60S-L has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, wrist straps, and mats to prevent damage from static electricity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIB20M60S-L Overview

Use the download button to access the STGIB20M60S-L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIB, or try a keyword search, such as Motion Control Electronics
