STGIB20M60S-XZ - STMicroelectronics

Description: SLLIMM 2nd series IPM, 3-phase inverter, 25 A, 600 V short-circuit rugged IGBTs

Download STGIB20M60S-XZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

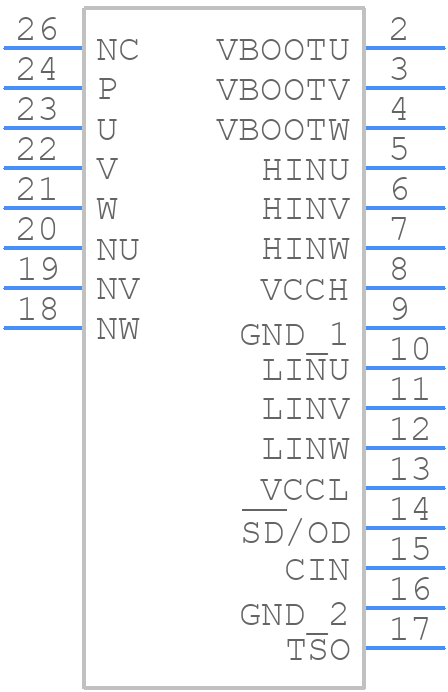

STGIB20M60S-XZ - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

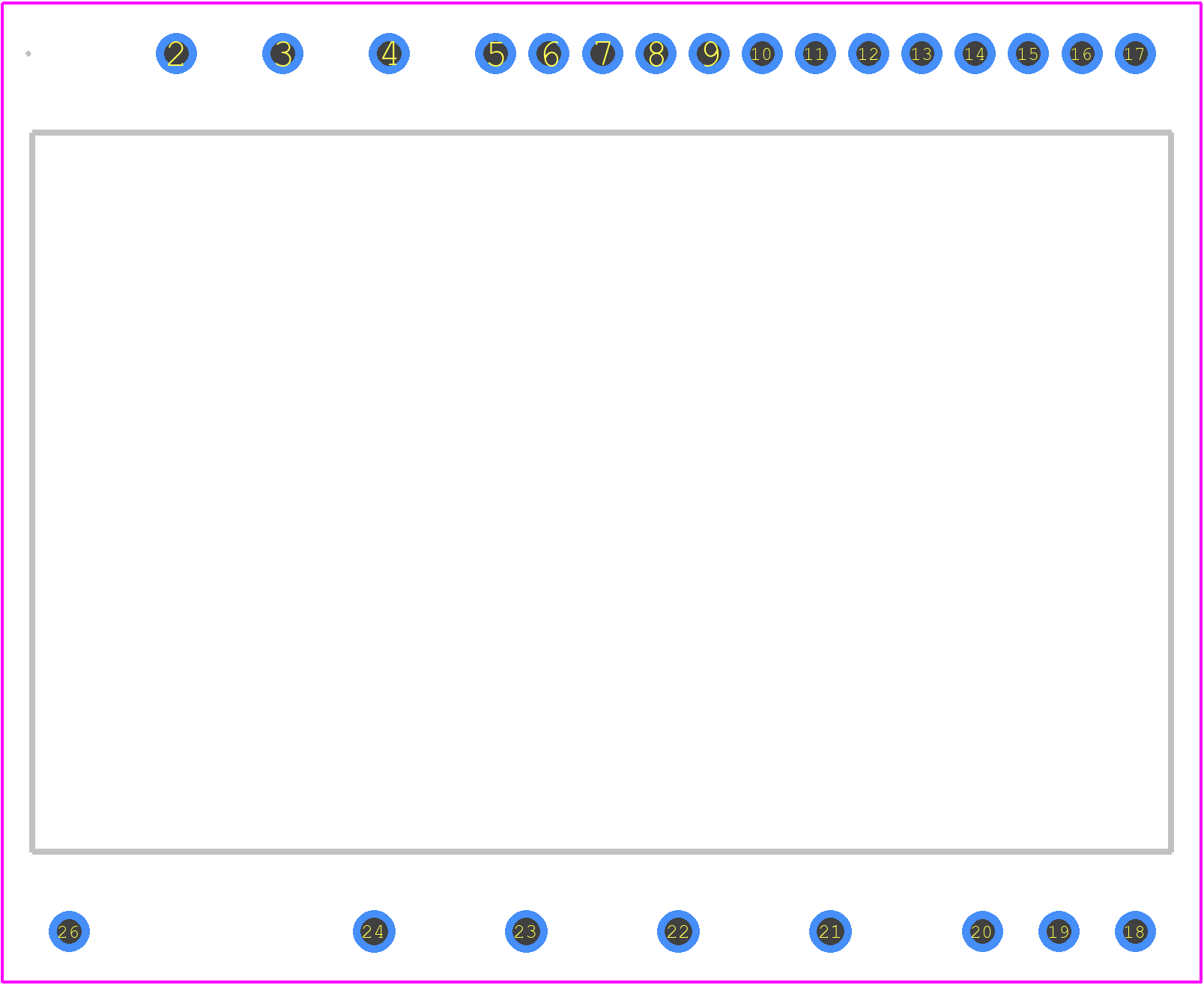

STGIB20M60S-XZ - STMicroelectronics PCB footprint - Other - Other - STGIB20M60S-XZ-2
click to zoom
3D Models
STGIB20M60S-XZ - STMicroelectronics - 3D model - Other - STGIB20M60S-XZ-2
click to zoom

STGIB20M60S-XZ Details

  • Manufacturer Part Number:

    STGIB20M60S-XZ

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIB20M60S-XZ Overview

Use the download button to access the STGIB20M60S-XZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIB, or try a keyword search, such as Motion Control Electronics
