STGIB20M60TS-L - STMicroelectronics

Description: SLLIMM - 2nd series IPM, 3-phase inverter, 25 A, 600 V short-circuit rugged IGBT

Download STGIB20M60TS-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

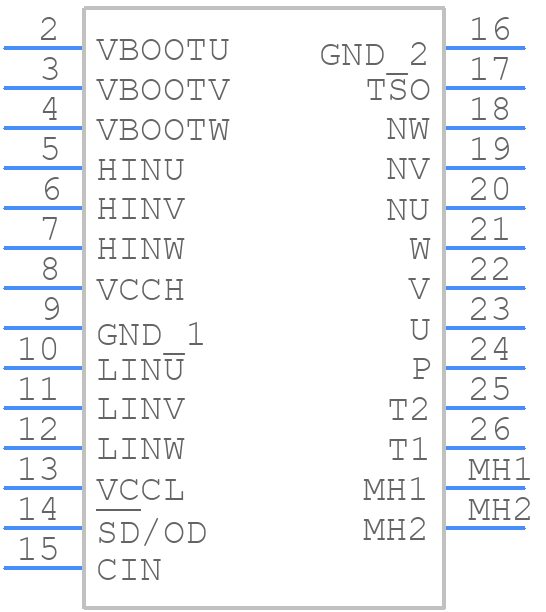

Symbol
STGIB20M60TS-L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

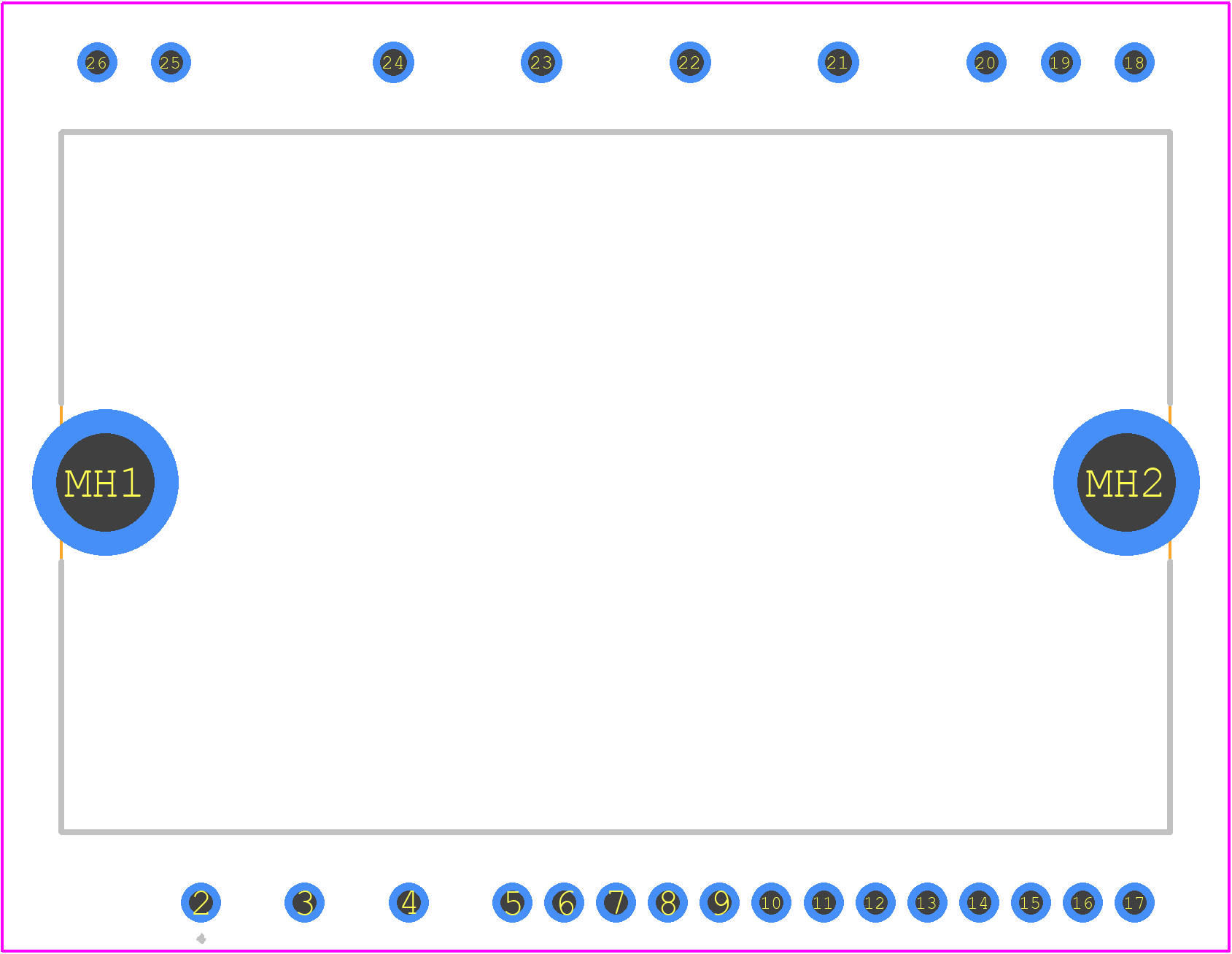

STGIB20M60TS-L - STMicroelectronics PCB footprint - Other - Other - SDIP2B-26L type L1_2021
click to zoom
3D Models
STGIB20M60TS-L - STMicroelectronics - 3D model - Other - SDIP2B-26L type L1_2021
click to zoom

STGIB20M60TS-L Details

  • Manufacturer Part Number:

    STGIB20M60TS-L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Additional Feature:

    ALSO REQUIRE 13V TO 18V; 0V TO 400V SUPPLY

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDFM-T26

  • Length:

    38 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    50 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    24 mm

STGIB20M60TS-L Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the STGIB20M60TS-L is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, make sure to attach a heat sink to the device, and apply a thermal interface material (TIM) to fill any gaps between the device and heat sink. Also, ensure good airflow around the heat sink to dissipate heat efficiently.
  • The recommended gate resistor value for the STGIB20M60TS-L is between 10 ohms and 100 ohms, depending on the specific application and switching frequency. A higher gate resistor value can help reduce electromagnetic interference (EMI), but may increase switching losses.
  • Yes, the STGIB20M60TS-L can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are properly matched and that the gate signals are synchronized to prevent uneven current sharing.
  • The recommended dead time for the STGIB20M60TS-L is typically between 100 ns and 500 ns, depending on the specific application and switching frequency. A longer dead time can help reduce electromagnetic interference (EMI), but may increase switching losses.
