STGIB30M60TS-L - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers SLLIMM 2nd series IPM, 3-phase inverter, 35 A, 600 V short-circuit rugged IGBT

Download STGIB30M60TS-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

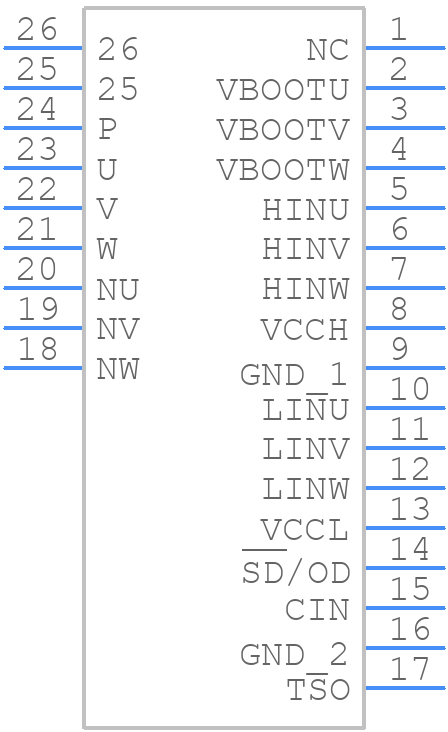

STGIB30M60TS-L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

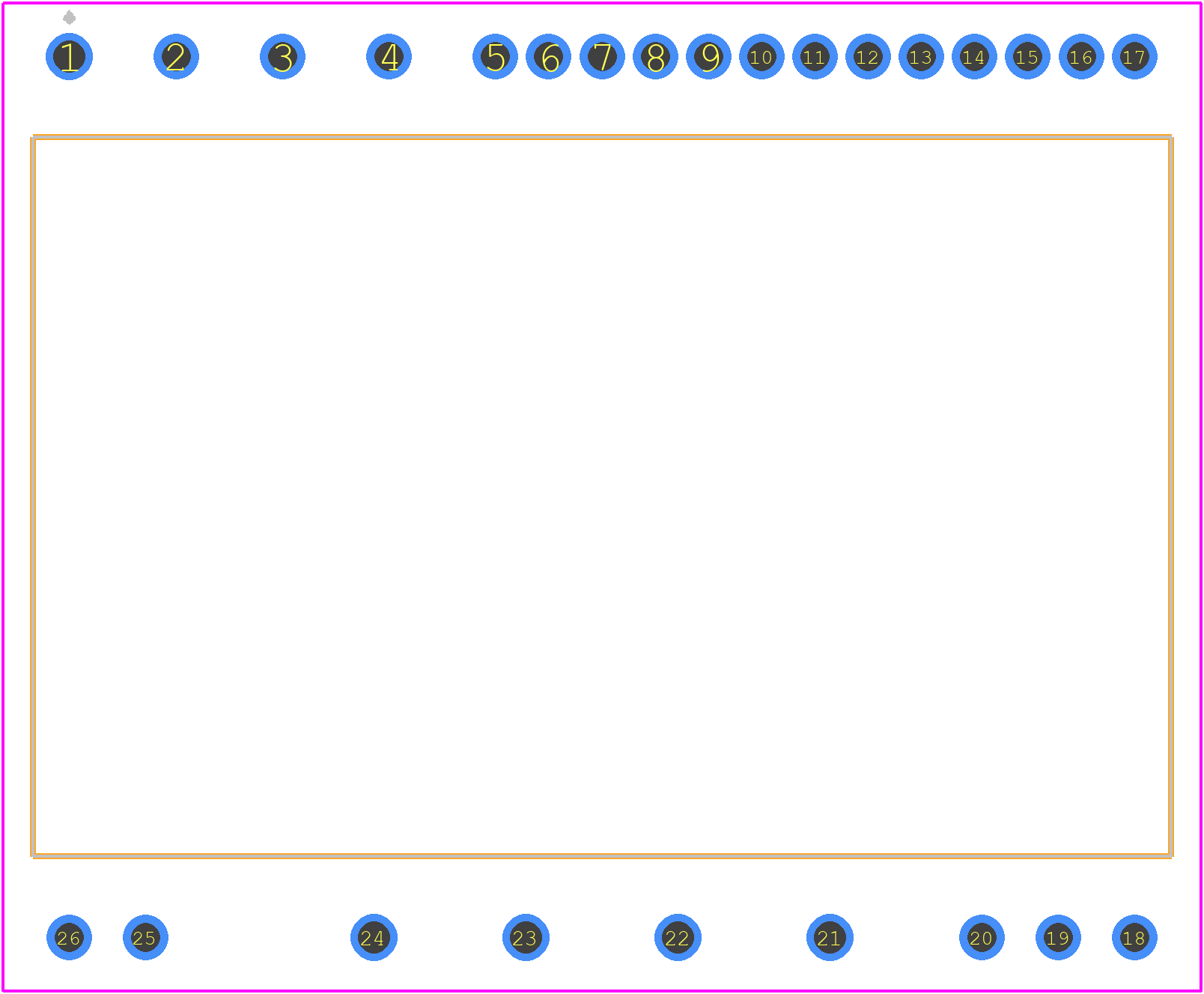

STGIB30M60TS-L - STMicroelectronics PCB footprint - Other - Other - SDIP2B-26L type L1
click to zoom
3D Models
STGIB30M60TS-L - STMicroelectronics - 3D model - Other - SDIP2B-26L type L1
click to zoom

STGIB30M60TS-L Details

  • Manufacturer Part Number:

    STGIB30M60TS-L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-26

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T26

  • JESD-609 Code:

    e3

  • Length:

    38 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    70 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    6 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    24 mm

STGIB30M60TS-L Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the STGIB30M60TS-L can withstand is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • To ensure proper cooling, it's essential to provide a good thermal interface between the device and the heat sink. Apply a thin layer of thermal interface material, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the device to dissipate heat efficiently.
  • The recommended gate resistor value for the STGIB30M60TS-L is between 10 ohms and 100 ohms, depending on the specific application and switching frequency. A higher gate resistor value can help reduce electromagnetic interference (EMI), but may increase switching losses.
  • Yes, the STGIB30M60TS-L can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are properly matched and that the gate signals are properly synchronized to avoid uneven current sharing.
  • The recommended dead time for the STGIB30M60TS-L is between 100 ns and 500 ns, depending on the specific application and switching frequency. A longer dead time can help reduce electromagnetic interference (EMI), but may increase switching losses.
