STGIF5CH60TS-XZ - STMicroelectronics

Description: SLLIMM 2nd series IPM, 3-phase inverter, 8 A, 600 V short-circuit rugged IGBTs

Download STGIF5CH60TS-XZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

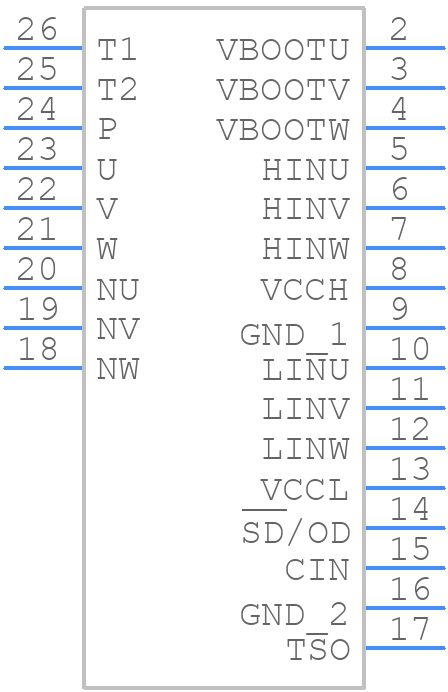

Symbol
STGIF5CH60TS-XZ - STMicroelectronics - PCB symbol
click to zoom

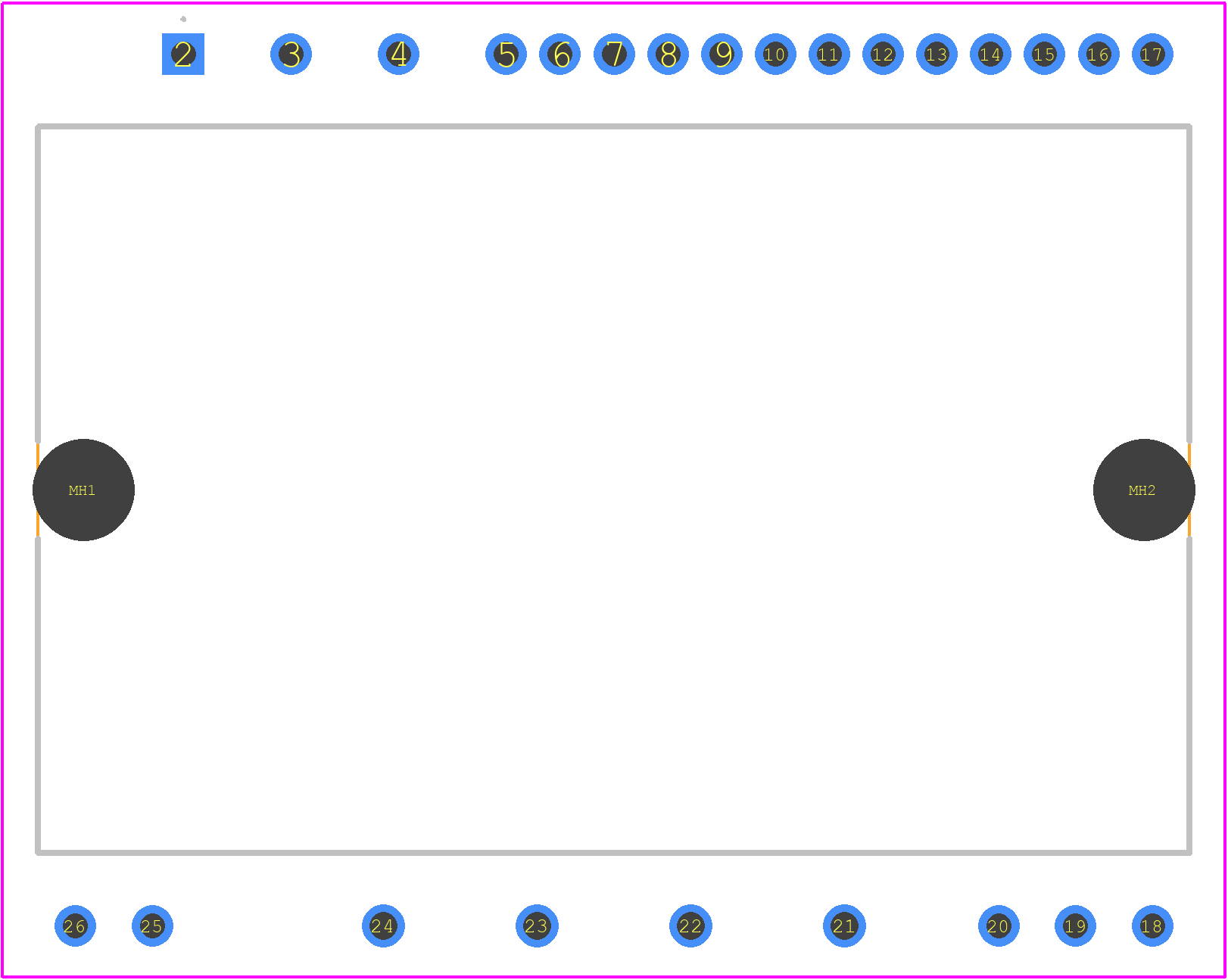

PCB Footprints
STGIF5CH60TS-XZ - STMicroelectronics PCB footprint - Other - Other - STGIF5CH60TS-X
click to zoom
3D Models
STGIF5CH60TS-XZ - STMicroelectronics - 3D model - Other - STGIF5CH60TS-X
click to zoom

STGIF5CH60TS-XZ Details

  • Manufacturer Part Number:

    STGIF5CH60TS-XZ

  • Part Life Cycle Code:

    Active Unconfirmed

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

STGIF5CH60TS-XZ Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the STGIF5CH60TS-XZ is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • The thermal resistance (Rth) for the STGIF5CH60TS-XZ can be calculated using the formula: Rth = (Tj - Tc) / Pd, where Tj is the junction temperature, Tc is the case temperature, and Pd is the power dissipation. The datasheet provides the thermal resistance values for different packages and mounting conditions.
  • The recommended gate resistance (Rg) for the STGIF5CH60TS-XZ is typically in the range of 10 ohms to 100 ohms, depending on the application and switching frequency. A higher gate resistance can help reduce electromagnetic interference (EMI) and improve noise immunity.
  • Yes, the STGIF5CH60TS-XZ can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are properly matched, and the gate drive circuits are designed to handle the increased current and voltage requirements.
  • The recommended dead-time for the STGIF5CH60TS-XZ depends on the application and switching frequency. A typical dead-time range is between 100 ns to 500 ns, but it's essential to consult the datasheet and application notes for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIF5CH60TS-XZ Overview

Use the download button to access the STGIF5CH60TS-XZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIF, or try a keyword search, such as Motion Control Electronics
