STGIF7CH60TS-E - STMicroelectronics

Description: SLLIMM 2nd series IPM, 3-phase inverter, 10 A, 600 V short-circuit rugged IGBTs

Download STGIF7CH60TS-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

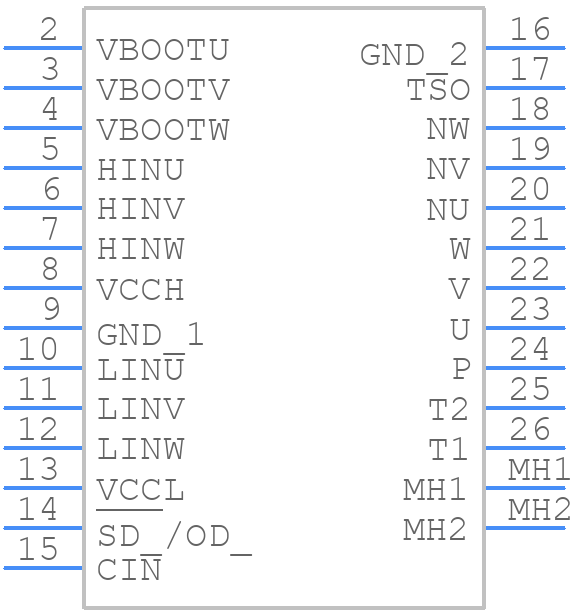

STGIF7CH60TS-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

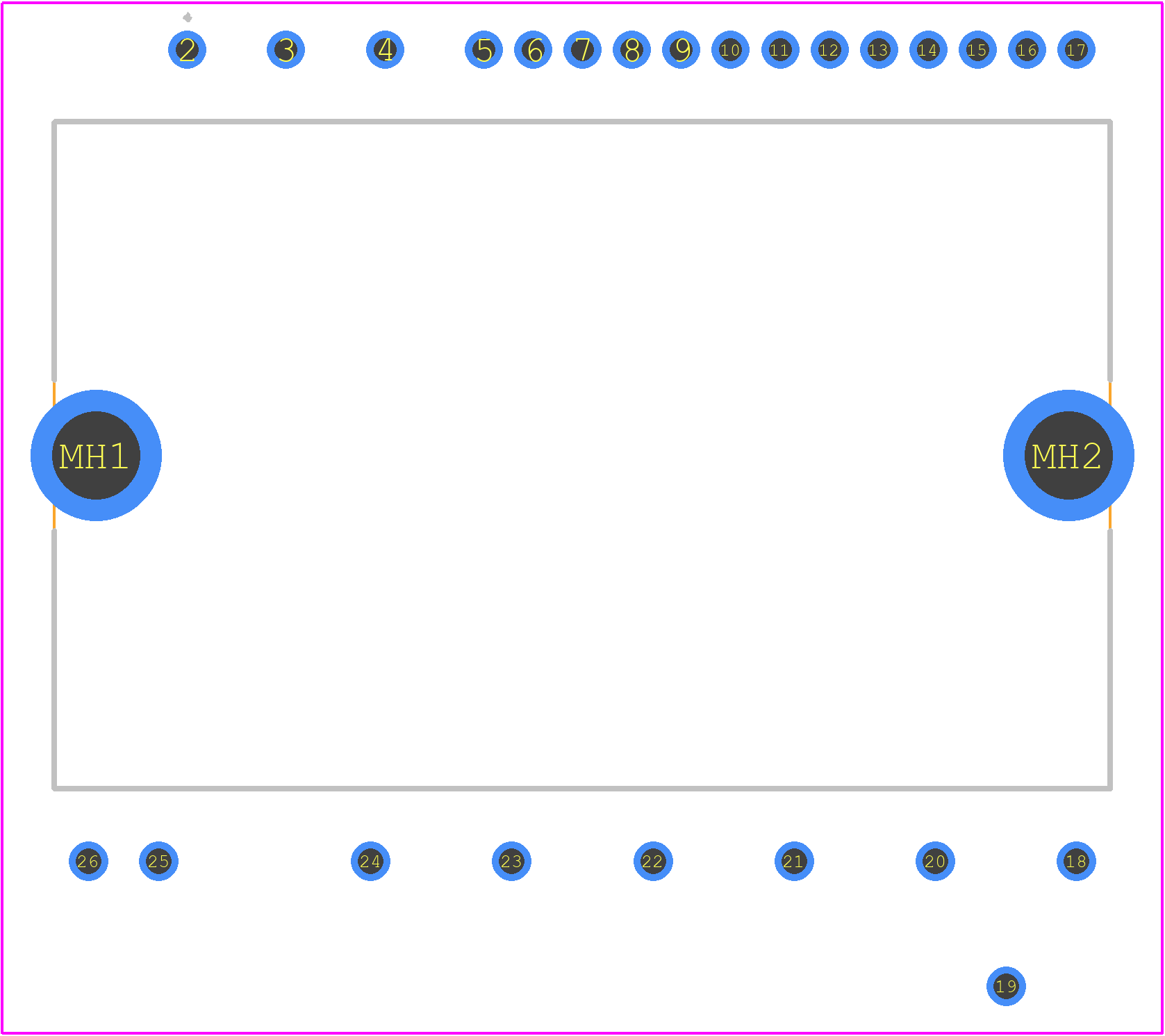

STGIF7CH60TS-E - STMicroelectronics PCB footprint - Other - Other - SDIP2F-26L
click to zoom
3D Models
STGIF7CH60TS-E - STMicroelectronics - 3D model - Other - SDIP2F-26L
click to zoom

STGIF7CH60TS-E Details

  • Manufacturer Part Number:

    STGIF7CH60TS-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

STGIF7CH60TS-E Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the STGIF7CH60TS-E can withstand is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • To ensure proper cooling, it's essential to provide a good thermal path from the device to a heat sink or a metal plate. Use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK, and ensure the heat sink is designed to handle the maximum power dissipation of the device.
  • The recommended gate drive voltage for the STGIF7CH60TS-E is between 10V and 15V, with a maximum voltage of 20V. However, it's essential to ensure the gate drive voltage is within the specified range to prevent damage to the device.
  • Yes, the STGIF7CH60TS-E can be used in a parallel configuration to increase the current handling capability. However, it's crucial to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing.
  • The recommended dead time for the STGIF7CH60TS-E is typically in the range of 100ns to 500ns, depending on the specific application and switching frequency. A longer dead time can help reduce electromagnetic interference (EMI) and prevent cross-conduction, but may also increase switching losses.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIF7CH60TS-E Overview

Use the download button to access the STGIF7CH60TS-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIF, or try a keyword search, such as Motion Control Electronics
