STGIF7CH60TS-L - STMicroelectronics

Description: SLLIMM - 2nd series IPM, 3-phase inverter, 10 A, 600 V, short‑circuit rugged IGBT

Download STGIF7CH60TS-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

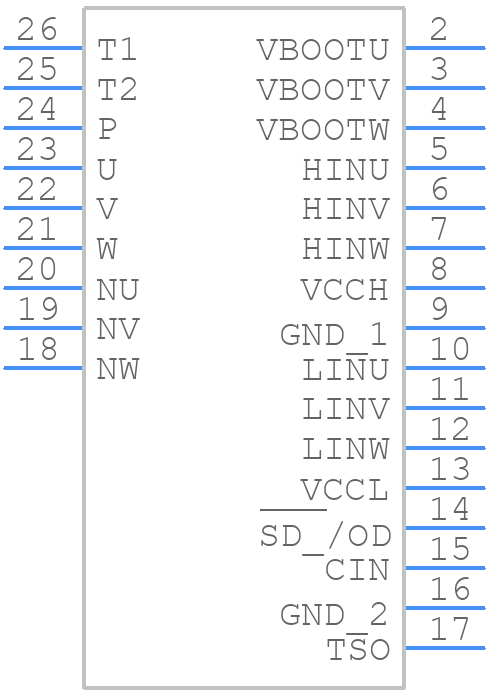

STGIF7CH60TS-L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

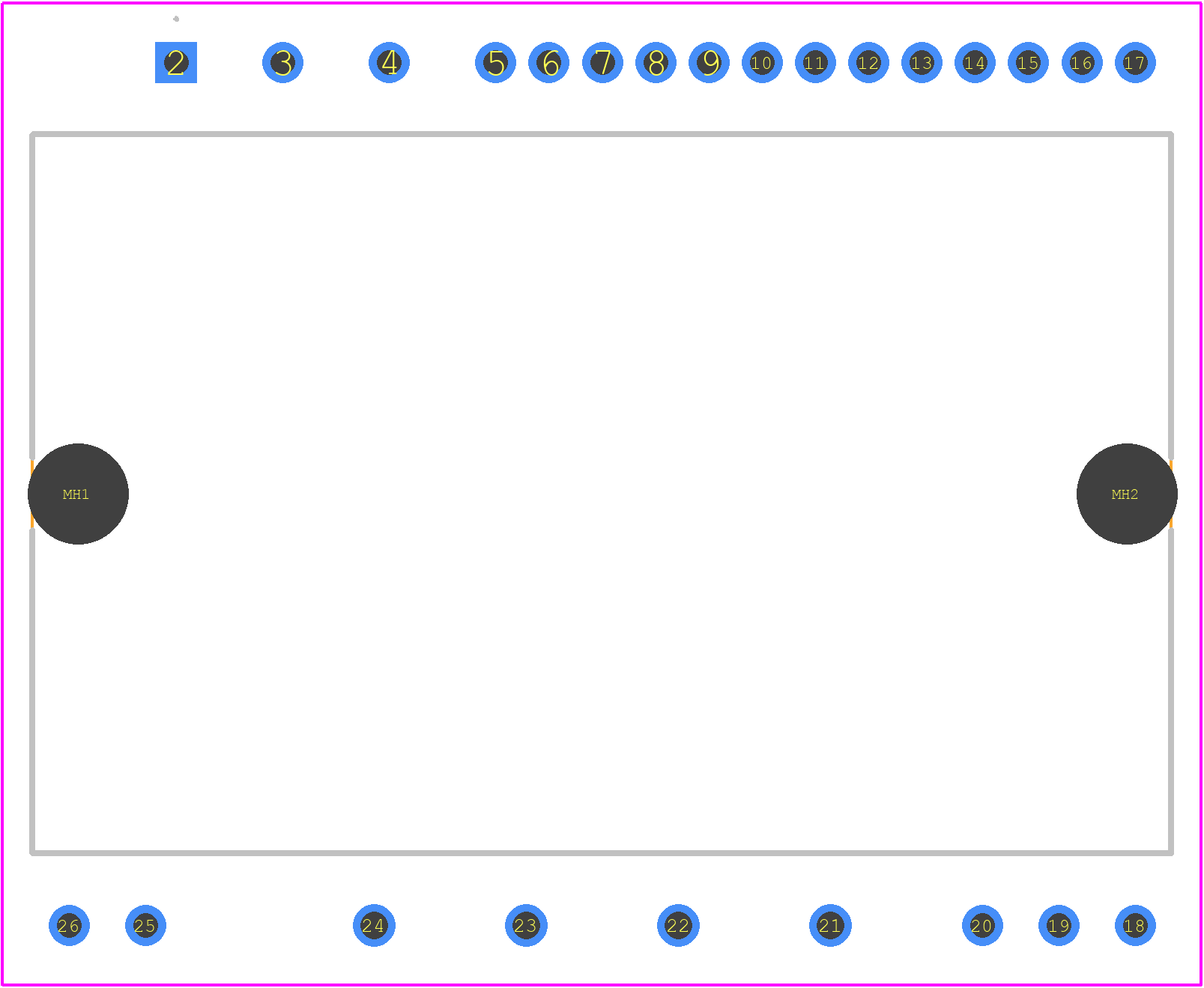

STGIF7CH60TS-L - STMicroelectronics PCB footprint - Other - Other - STGIF7CH60TS-L
click to zoom
3D Models
STGIF7CH60TS-L - STMicroelectronics - 3D model - Other - STGIF7CH60TS-L
click to zoom

STGIF7CH60TS-L Details

  • Manufacturer Part Number:

    STGIF7CH60TS-L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDFM-T26

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

STGIF7CH60TS-L Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the STGIF7CH60TS-L is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, make sure to provide a sufficient heat sink and thermal interface material (TIM) between the device and the heat sink. The heat sink should be designed to dissipate the maximum power dissipation of the device, which is 250W for the STGIF7CH60TS-L.
  • The recommended gate resistor value for the STGIF7CH60TS-L is between 10Ω and 20Ω. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the application note or contact STMicroelectronics support for more information.
  • Yes, the STGIF7CH60TS-L is a high-reliability device that meets the requirements for automotive and industrial applications. It's qualified according to the AEC-Q101 standard and has a high mean time between failures (MTBF). However, it's recommended to consult the datasheet and application notes for specific reliability data and guidelines.
  • To protect the STGIF7CH60TS-L from ESD, follow proper handling and storage procedures, such as using anti-static bags or tubes, and grounding yourself before handling the device. It's also recommended to use ESD protection devices, such as TVS diodes, in the circuit design.
