STGIPN3H60A - STMicroelectronics

Description: SLLIMM-nano small low-loss intelligent molded module IPM, 3 A, 600 V 3-phase IGBT inverter bridge

Download STGIPN3H60A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

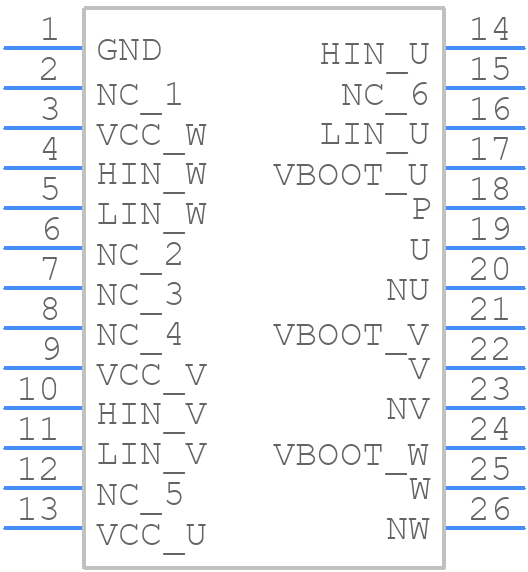

STGIPN3H60A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

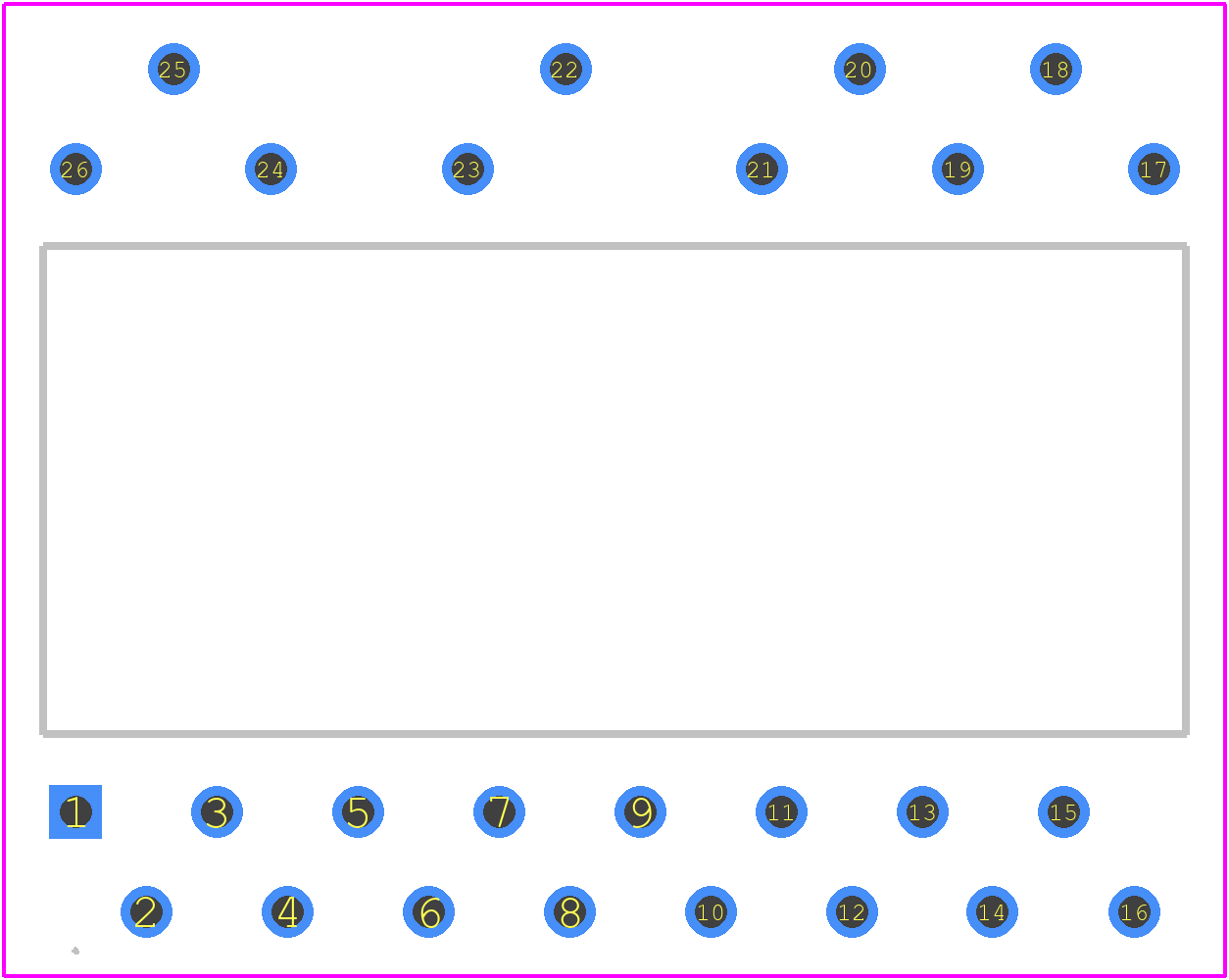

STGIPN3H60A - STMicroelectronics PCB footprint - Other - Other - NDIP-26L
click to zoom
3D Models
STGIPN3H60A - STMicroelectronics - 3D model - Other - NDIP-26L
click to zoom

STGIPN3H60A Details

  • Manufacturer Part Number:

    STGIPN3H60A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP,

  • Pin Count:

    26

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T26

  • JESD-609 Code:

    e3

  • Length:

    29.15 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    4.4 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

STGIPN3H60A Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the STGIPN3H60A is 175°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 150°C for reliable operation.
  • To ensure proper cooling, make sure to provide a sufficient heat sink and thermal interface material between the device and the heat sink. The heat sink should be designed to dissipate the maximum power dissipation of the device, which is around 200W.
  • The recommended gate resistor value for the STGIPN3H60A is between 10Ω to 20Ω. However, the optimal value may vary depending on the specific application and switching frequency.
  • Yes, the STGIPN3H60A is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and assembly guidelines to ensure the device operates within its specified parameters.
  • To protect the STGIPN3H60A from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the workspace and equipment are grounded, and use anti-static packaging and materials during storage and transportation.
