Part Image

STGIPQ5C60T-HZ - STMicroelectronics

Description: SLLIMM nano 2nd series IPM, 3-phase inverter, 5 A, 600 V, short‑circuit rugged IGBTs

Download STGIPQ5C60T-HZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

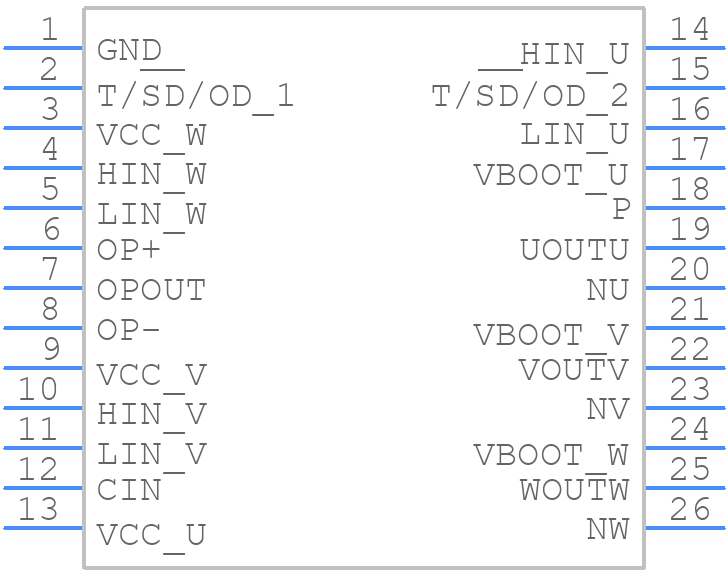

STGIPQ5C60T-HZ - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

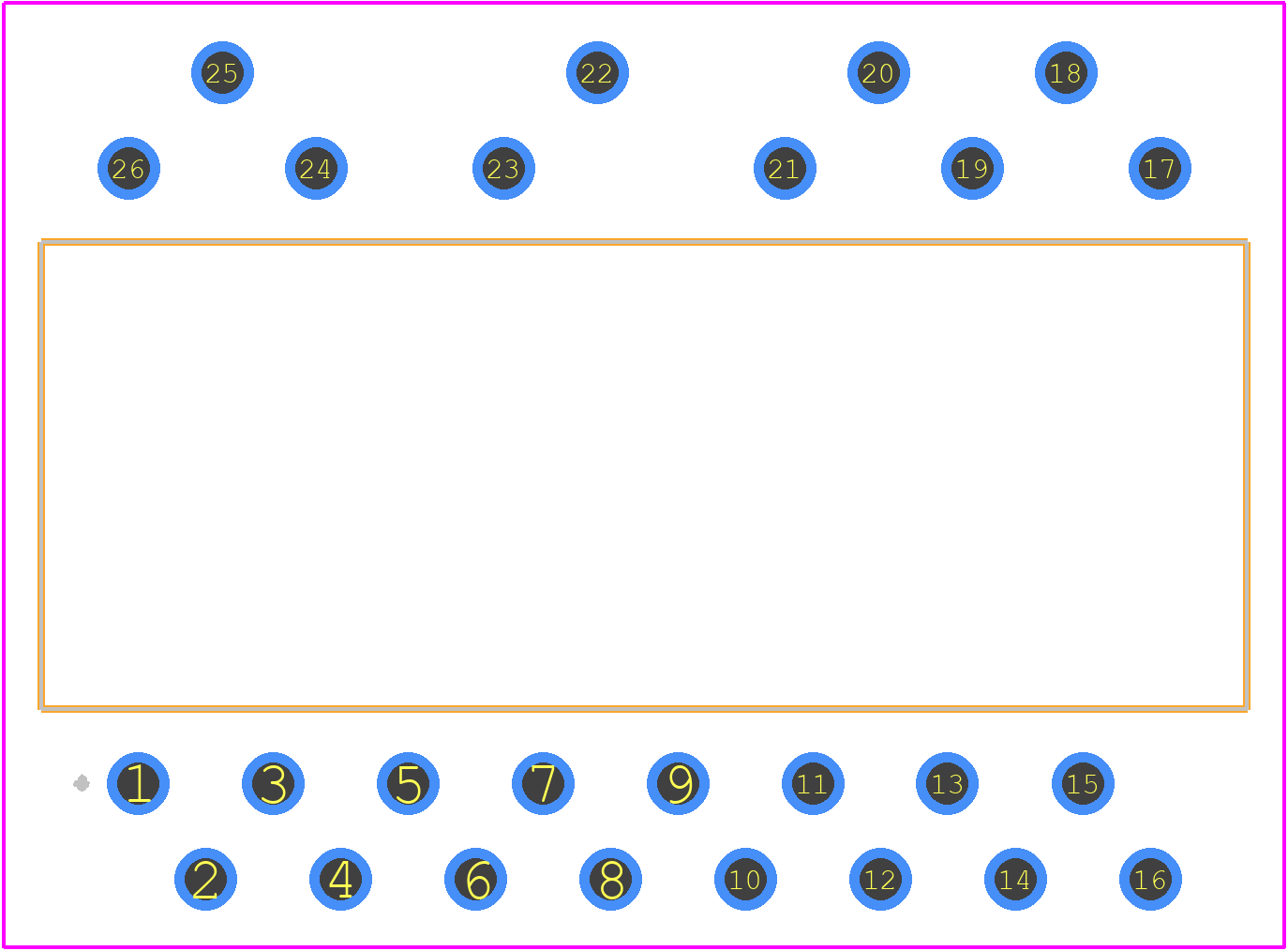

STGIPQ5C60T-HZ - STMicroelectronics PCB footprint - Other - Other - N2DIP-26L type Z
click to zoom
3D Models
STGIPQ5C60T-HZ - STMicroelectronics - 3D model - Other - N2DIP-26L type Z
click to zoom

STGIPQ5C60T-HZ Details

  • Manufacturer Part Number:

    STGIPQ5C60T-HZ

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-26

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDFM-T26

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

STGIPQ5C60T-HZ Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the STGIPQ5C60T-HZ can withstand is 175°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management.
  • The recommended gate drive voltage for the STGIPQ5C60T-HZ is between 10V and 15V, with a maximum voltage of 20V.
  • Yes, the STGIPQ5C60T-HZ can be used in a parallel configuration to increase current handling, but it's essential to ensure proper synchronization and thermal management to avoid uneven current sharing.
  • The maximum switching frequency that the STGIPQ5C60T-HZ can handle is 100 kHz, but it's recommended to operate at a lower frequency to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIPQ5C60T-HZ Overview

Use the download button to access the STGIPQ5C60T-HZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIP, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
