STGIPQ5C60T-HZS - STMicroelectronics

Description: IGBT Modules SLLIMM nano 2nd series IPM, 3-phase inverter, 5 A, 600 V short-circuit rugged IGBTs

Download STGIPQ5C60T-HZS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

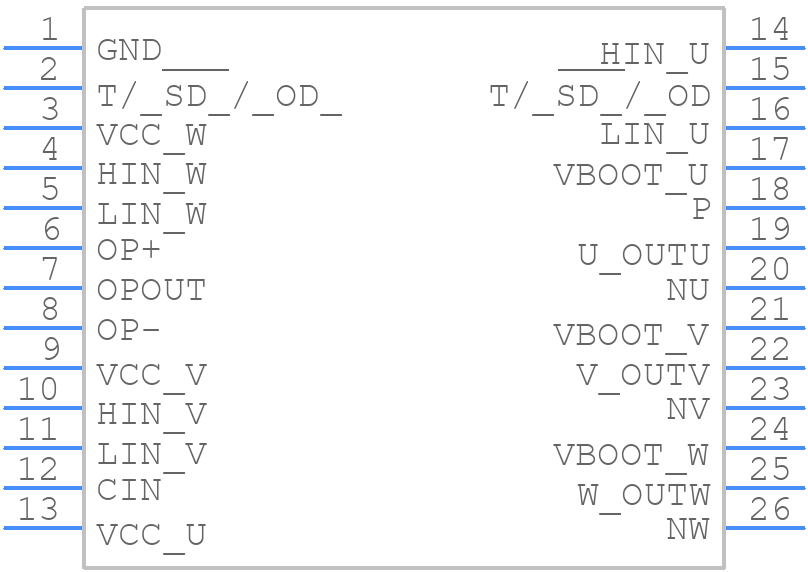

STGIPQ5C60T-HZS - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

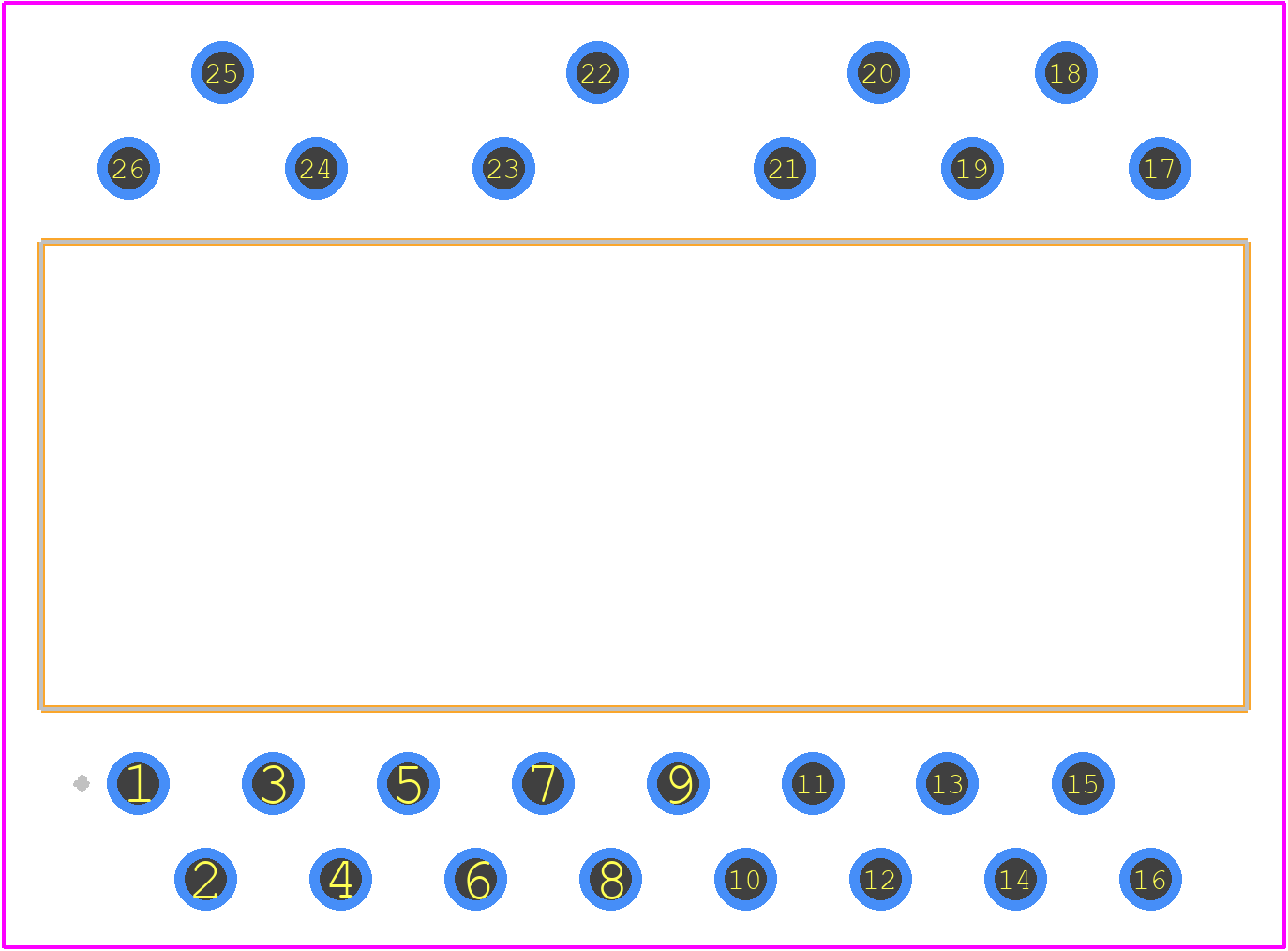

STGIPQ5C60T-HZS - STMicroelectronics PCB footprint - Other - Other - N2DIP-26L type Z
click to zoom
3D Models
STGIPQ5C60T-HZS - STMicroelectronics - 3D model - Other - N2DIP-26L type Z
click to zoom

STGIPQ5C60T-HZS Details

  • Manufacturer Part Number:

    STGIPQ5C60T-HZS

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    N2DIP-26L

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XZFM-T26

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

STGIPQ5C60T-HZS Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the STGIPQ5C60T-HZS is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, make sure to provide a sufficient heat sink and thermal interface material between the device and the heat sink. The heat sink should be designed to dissipate the maximum power dissipation of the device, which is 250W for the STGIPQ5C60T-HZS.
  • The recommended gate drive voltage for the STGIPQ5C60T-HZS is between 10V and 15V. However, it's essential to ensure that the gate drive voltage is within the specified range to prevent damage to the device.
  • Yes, the STGIPQ5C60T-HZS is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
  • The maximum switching frequency for the STGIPQ5C60T-HZS depends on the specific application and operating conditions. However, as a general guideline, the device can operate up to 100 kHz. It's essential to consult the datasheet and application notes for more information on switching frequency and other operating parameters.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIPQ5C60T-HZS Overview

Use the download button to access the STGIPQ5C60T-HZS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIP, or try a keyword search, such as Motion Control Electronics
